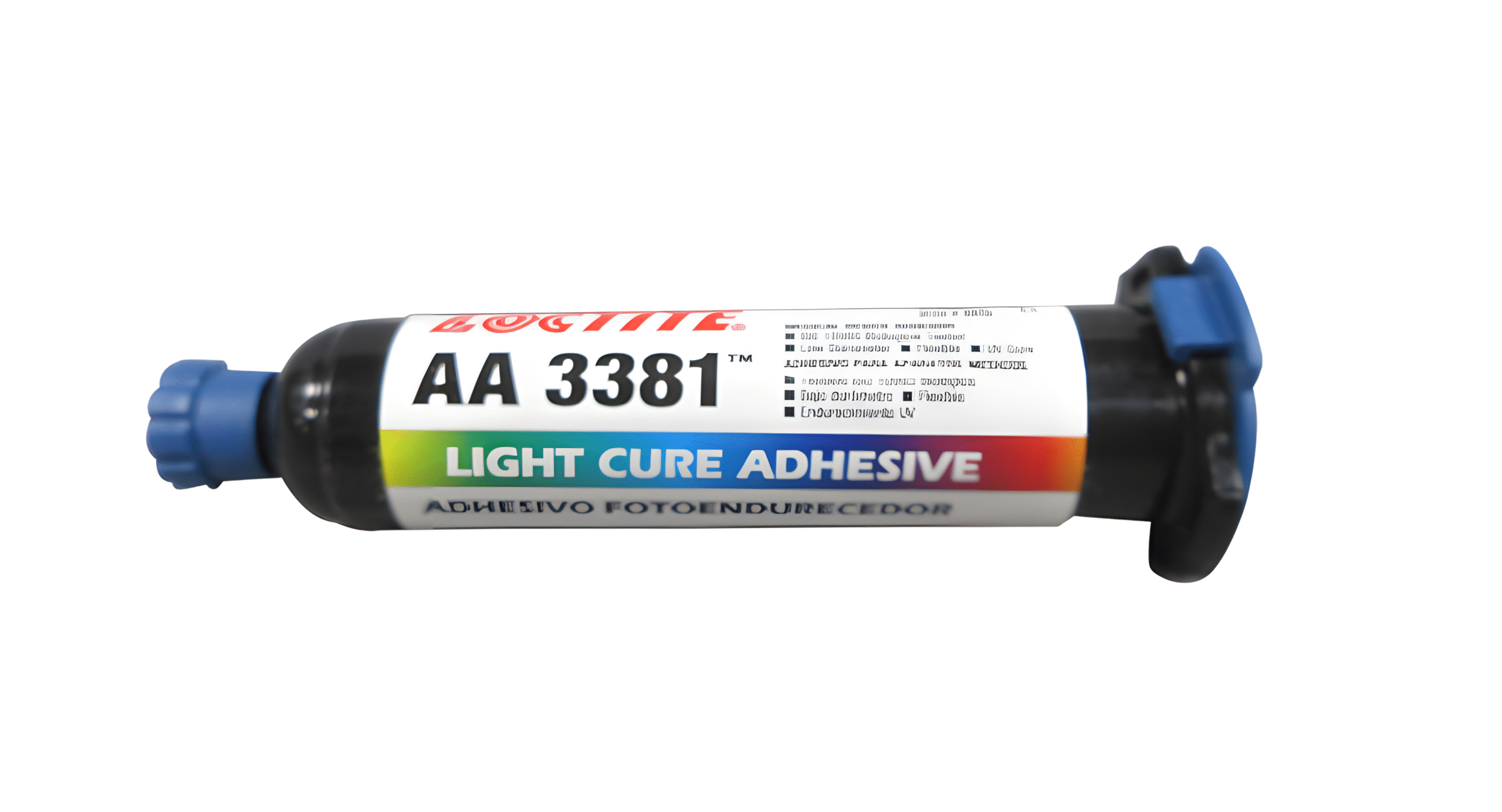

LOCTITE® AA 3381 is a medium-viscosity, one-component UV-curable acrylic adhesive designed for high-speed production. It offers flexible bonding with excellent load-bearing and shock absorption. Primarily used for potting and sealing glass-to-metal joints, it is ideal for medical devices and dissimilar rigid substrate bonding. Complies with Henkel’s ISO-10993 protocol for medical applications.
Medical device assembly (ISO 10993 qualified)
Glass to metal bonding
Dissimilar rigid substrate bonding
High-speed production lines
Suitable for sterilization processes (EtO, Gamma, 1x steam autoclave)
3. LOCTITE® AA 3381 – Key Technical Data
| Property | Unmixed/Uncured | After Mixing/Curing (UV @ 100 mW/cm² for 30s) |
|---|---|---|
| Appearance | Translucent colorless liquid | — |
| Specific Gravity @ 25°C | 1.08 | — |
| Viscosity (Spindle 4 @ 20 rpm) | 3,600 – 6,600 mPa·s | — |
| Cure Time (Glass, Zeta® 7200) | ≤15 sec @ 50 mW/cm² | 7 sec @ 100 mW/cm² |
| Shore Hardness (Durometer A) | — | ≥72 |
| Elongation at Break | — | 330% |
| Tensile Strength | — | 7.91 N/mm² (1,135 psi) |
| Tensile Modulus | — | 18.6 N/mm² (2,670 psi) |
| Dielectric Strength | — | 37 kV/mm |
| Surface Resistivity | — | 7.84×10¹⁴ Ω·cm |
| Volume Resistivity | — | 1.06×10¹⁴ Ω·cm |
| Dielectric Constant @ 5–50 GHz | — | 3.32 – 2.96 |
| Dissipation Factor @ 5–50 GHz | — | 0.086 – 0.059 |
| UV Depth of Cure (15 sec, 100 mW/cm²) | — | ≥1.6 mm |
LOCTITE ECCOBOND UF 9000AG-061 is specifically formulated for FCBGA and Cu pillar flip chip packaging, ensuring robust solder joint encapsulation under extreme electrothermal cycling from -65 °C to 150 °C. Its superior capillary flow also optimizes throughput in automated assembly lines for high-density ICs.
BERGQUIST microTIM mTIM 1028 is purpose built for riding cage assemblies in servers, switches, and routers, interfacing with electroless nickel plated copper or aluminum heat sinks. It ensures stable operation in high power transceiver modules while also extending applicability to liquid cooling components, heat pipes, and fin based dissipative structures.
LOCTITE® ABLESTIK NCA 3218 is specifically formulated for ADAS optical modules, ensuring secure bonding in lens barrel to housing and lens housing to circuit board interfaces where dimensional accuracy and dielectric integrity are non negotiable.
Loctite® 3296, a dual cure (UV & thermal) adhesive, is engineered for active alignment assembly of ADAS cameras and LiDAR modules. Its optimized bonding to aluminum and FR4 substrates ensures secure fixation of optical components while enabling nanometer level alignment critical for high resolution imaging.
