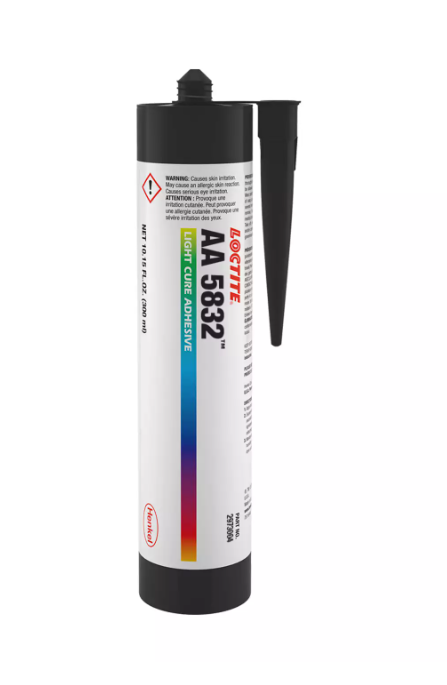

Item Name: LOCTITE® AA 5832
Manufacturer: Henkel
Technologies: Dual cure (UV + moisture) polyacrylate
Color: Transparent, yellow to light amber liquid
Cure Type: UV cure with secondary moisture cure
Package Size: Contact to Techniq VN for details.
Shelf Life: Contact to Techniq VN for details.
LOCTITE® AA 5832 is a transparent, fluorescent, dual-cure polyacrylate potting sealant that combines UV and secondary moisture curing mechanisms. It offers high resistance to automatic transmission fluids (ATF) and oils, making it suitable for automotive and electronic sealing applications. The product develops rapid functional strength under UV exposure, while full performance evolves over time at ambient conditions. It maintains mechanical integrity after long-term exposure to elevated temperatures and harsh environments.
Potting and sealing of automotive components.
Encapsulation of electronic parts requiring ATF and oil resistance.
Sealing against transmission fluids in under-the-hood environments.
Not recommended for continuous immersion in water or oxygen-rich systems.
| Property | Still Not Mixed (Uncured) | After Cured |
|---|---|---|
| Appearance | Transparent, yellow to amber liquid | – |
| Specific Gravity @ 25 °C | 1.08 | – |
| Viscosity | 3,400–6,400 mPa·s | – |
| Solids Content | 79.1 % | – |
| Flash Point | 82 °C | – |
| Cure Method | UV (primary), moisture (secondary) | – |
| Depth of Cure | ≥10 mm @ 60 s UV exposure | – |
| Shore Hardness (A) | – | 60–75 |
| Tensile Strength | – | 4.5–6 MPa |
| Elongation at Break | – | 200–275 % |
| Tg (DMA) | – | Onset: -30 °C, Peak: -10 °C |
| CTE | – | Pre-Tg: 85, Post-Tg: 245 |
| Thermal Conductivity | – | 0.18 W/m·K |
| Water Absorption | – | 14.5 % |
| Horizontal Burn Rate | – | 19.7 mm/min (Class B) |
| Aged Properties (1000 h @ 150 °C) | – | Hardness: 63–69, Tensile: ~6 MPa, Elongation: 228–246 % |
| Adhesion (various substrates) | – | 200–640 psi depending on substrate & aging |
