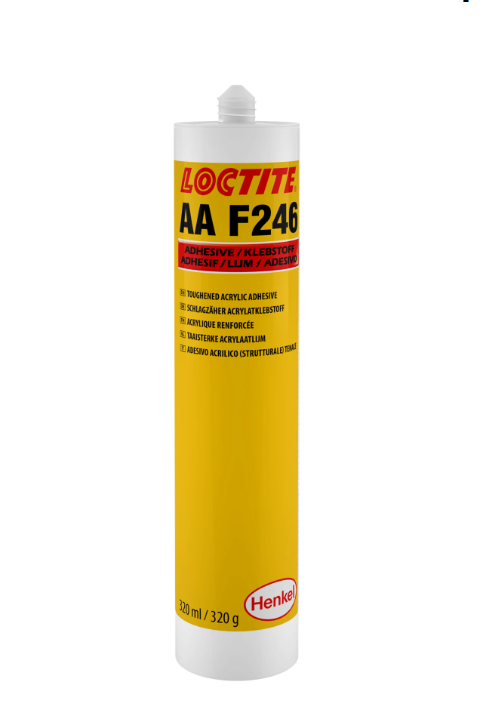

LOCTITE® AA F246™ is a two-component, high-strength, toughened acrylic adhesive designed for structural bonding. It cures rapidly at room temperature when assembled with an activator and provides strong adhesion to various substrates. The adhesive exhibits high viscosity and is applied without mixing.
| Property | Value |
|---|---|
| Chemical Type | Modified methacrylate ester |
| Appearance | Straw yellow to brown liquid |
| Specific Gravity @ 25°C | 1.0 |
| Viscosity @ 25°C (Pa⋅s) | 17.0 to 35.0 |
| Thermal Stability @ 82°C (hrs) | ≥3 |
| Property | Value |
| Lap Shear Strength (GBMS) | 33 N/mm² (4,760 psi) |
| Lap Shear Strength (Aluminum) | 19 N/mm² (2,780 psi) |
| Lap Shear Strength (Stainless Steel) | 16 N/mm² (2,250 psi) |
| Lap Shear Strength (ABS) | 6.1 N/mm² (880 psi) |
| Lap Shear Strength (PVC) | 11 N/mm² (1,600 psi) |
| T-Peel Strength (Aluminum) | 4.5 N/mm² (650 psi) |
| Test Condition | Strength Retention (%) |
| Acetone Exposure (22°C, 5000h) | 2% |
| ATF Exposure (22°C, 5000h) | 88% |
| 98% Relative Humidity (40°C, 5000h) | 55% |
| Motor Oil Exposure (22°C, 5000h) | 77% |
| Salt Water (7.5%) (22°C, 5000h) | 69% |
| Unleaded Gasoline (22°C, 5000h) | 7% |
| Water Exposure (60°C, 5000h) | 45% |
| Water/Glycol (50/50) (87°C, 5000h) | 39% |
