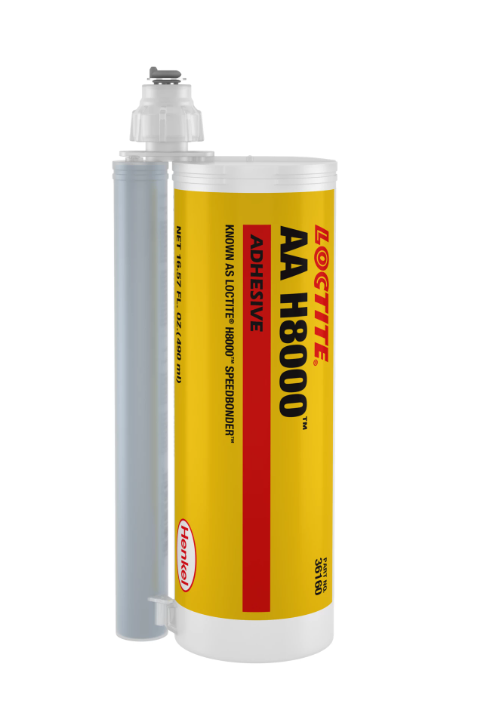

LOCTITE® AA H8000™ is a two-component, non-sag methacrylate adhesive designed for high-strength bonding. It cures at room temperature and offers superior impact and peel strength with minimal surface preparation. The adhesive provides excellent environmental resistance and maintains strength over a wide temperature range.
| Property | Part A (Resin) | Part B (Hardener) | Mixed |
|---|---|---|---|
| Appearance | Yellow | Blue | Green |
| Specific Gravity @ 25°C | 0.97 | 1.2 | 0.98 |
| Viscosity (Brookfield, 25°C, mPa·s) | 160,000 – 250,000 | 20,000 – 50,000 | 8,850 |
| Mix Ratio (by volume) | 10:1 | ||
| Working Time @ 25°C (minutes) | 30 | ||
| Fixture Time (ISO 4587, minutes) | 25-30 | ||
| Peak Exotherm Temperature (10g mass, °C) | 128 |
| Property | Value |
|---|---|
| Glass Transition Temperature (Tg, °C) | 71 |
| Shore Hardness (D, ISO 868) | 70 |
| Elongation at Break (% , ISO 527-2) | 13 |
| Tensile Strength at Break (N/mm², ISO 527-2) | 15 (2,150 psi) |
| Lap Shear Strength (N/mm², Steel, ISO 4587) | ≥19.3 |
| Impact Strength (J, ISO 9653, Grit-Blasted Mild Steel) | 23 |
LOCTITE ECCOBOND UF 9000AG-061 is specifically formulated for FCBGA and Cu pillar flip chip packaging, ensuring robust solder joint encapsulation under extreme electrothermal cycling from -65 °C to 150 °C. Its superior capillary flow also optimizes throughput in automated assembly lines for high-density ICs.
BERGQUIST microTIM mTIM 1028 is purpose built for riding cage assemblies in servers, switches, and routers, interfacing with electroless nickel plated copper or aluminum heat sinks. It ensures stable operation in high power transceiver modules while also extending applicability to liquid cooling components, heat pipes, and fin based dissipative structures.
LOCTITE® ABLESTIK NCA 3218 is specifically formulated for ADAS optical modules, ensuring secure bonding in lens barrel to housing and lens housing to circuit board interfaces where dimensional accuracy and dielectric integrity are non negotiable.
Loctite® 3296, a dual cure (UV & thermal) adhesive, is engineered for active alignment assembly of ADAS cameras and LiDAR modules. Its optimized bonding to aluminum and FR4 substrates ensures secure fixation of optical components while enabling nanometer level alignment critical for high resolution imaging.
