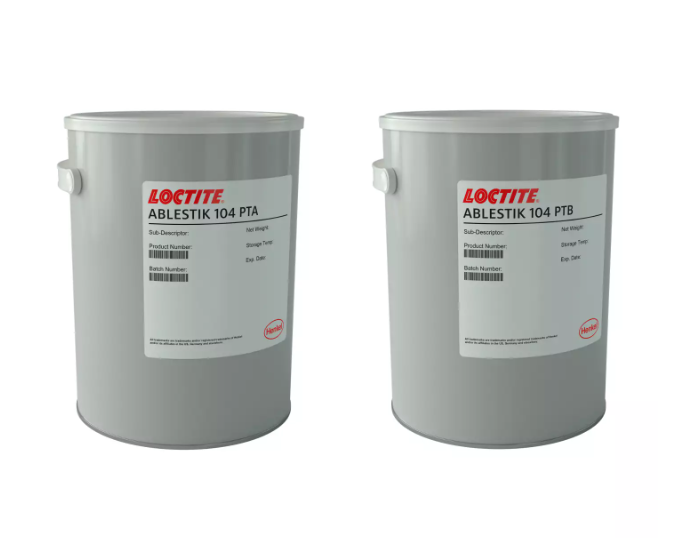

LOCTITE ABLESTIK 104 is a two-component epoxy adhesive with high shear strength, excellent chemical resistance, and long pot life. It is designed for high-temperature applications, withstanding continuous exposure up to 230°C and short-term exposure up to 280°C.
| Property | Component A (Resin) | Component B (Hardener) | Mixed |
|---|---|---|---|
| Appearance | Black liquid | White powder | – |
| Viscosity @ 25°C | 25,000 mPa·s | – | – |
| Density (g/cm³) | 1.35 | – | 1.4 |
| Shelf Life @ 25°C | 183 days | 183 days | – |
| Mixing Ratio (by weight) | 100:64 | – | – |
| Working Time @ 25°C | – | – | >12 hrs |
| Cure Temperature | Time |
|---|---|
| 120°C | 6 hours |
| 150°C | 3 hours |
| 175°C | 2 hours |
| 200°C | 1 hour |
| Recommended Post-Cure: 2–4 hours at max operating temperature |
| Property | Value |
|---|---|
| Hardness (Shore D) | 90 |
| Coefficient of Thermal Expansion (ppm/°C) | 60 |
| Glass Transition Temperature (°C) | >225 |
| Property | Value |
|---|---|
| Volume Resistivity (Ω·cm) | 10¹⁵ |
| Dielectric Strength (kV/mm) | 15.7 |
| Property | Value (%) |
|---|---|
| TML | 0.52 |
| CVCM | 0.08 |
| Chemical | % Weight Change |
|---|---|
| 30% H₂SO₄ | +0.19 |
| 10% NaCl | +0.21 |
| 10% NaOH | +0.11 |
| Acetone | +0.06 |
| Toluene | +0.04 |
| Test Condition | Strength (N/mm²) | Strength (psi) |
|---|---|---|
| Aluminum @ 25°C | 12.4 | 1,800 |
| Aluminum @ 150°C | 11.7 | 1,700 |
| Aluminum @ 230°C | 9.7 | 1,400 |
LOCTITE ECCOBOND UF 9000AG-061 is specifically formulated for FCBGA and Cu pillar flip chip packaging, ensuring robust solder joint encapsulation under extreme electrothermal cycling from -65 °C to 150 °C. Its superior capillary flow also optimizes throughput in automated assembly lines for high-density ICs.
BERGQUIST microTIM mTIM 1028 is purpose built for riding cage assemblies in servers, switches, and routers, interfacing with electroless nickel plated copper or aluminum heat sinks. It ensures stable operation in high power transceiver modules while also extending applicability to liquid cooling components, heat pipes, and fin based dissipative structures.
LOCTITE® ABLESTIK NCA 3218 is specifically formulated for ADAS optical modules, ensuring secure bonding in lens barrel to housing and lens housing to circuit board interfaces where dimensional accuracy and dielectric integrity are non negotiable.
Loctite® 3296, a dual cure (UV & thermal) adhesive, is engineered for active alignment assembly of ADAS cameras and LiDAR modules. Its optimized bonding to aluminum and FR4 substrates ensures secure fixation of optical components while enabling nanometer level alignment critical for high resolution imaging.
