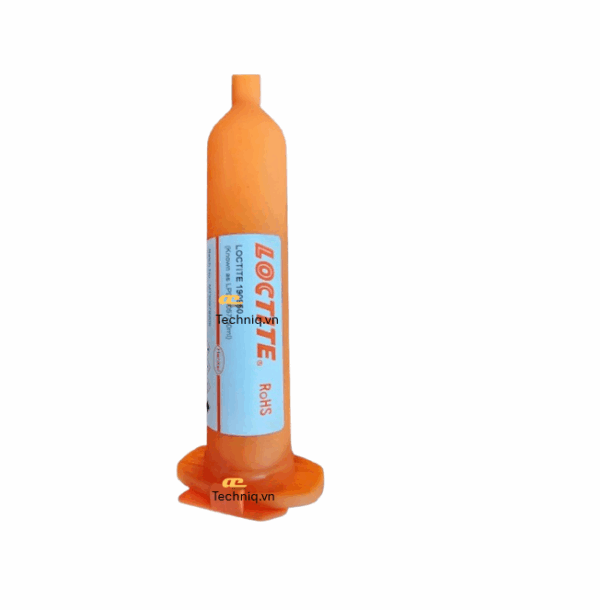

• Item Name: LOCTITE ABLESTIK 190950
• Manufacturer: Henkel
• Technologies: Acrylate-based, UV/Visible light-curable adhesive
• Color: Translucent amber
• Cure Type: Ultraviolet (UV) and visible light cure
• Package Size: Contact to Techniq VN for details.
• Shelf Life: 12 months
LOCTITE ABLESTIK 190950 is a one-component, UV/visible light-curable acrylate adhesive with a translucent amber appearance. It offers fast curing, low viscosity, and flexibility, making it ideal for high-precision assembly. Its thixotropic behavior ensures controlled flow and accurate dispensing. The product requires no mixing, cures rapidly under UV exposure, and maintains excellent optical clarity and mechanical performance after curing.
LOCTITE ABLESTIK 190950 is designed for component assembly and non-conductive adhesive (NCA) applications. It is widely used in wire protection for earphones and headsets, bonding parts in multi-actor assemblies, and image sensor lens bonding. The adhesive’s rapid curing and strong adhesion make it suitable for optical, electronic, and precision bonding tasks requiring clean and durable joints.
| Property | Unit | Before Curing (Uncured) | After Curing |
|---|---|---|---|
| Technology | — | Acrylate | — |
| Appearance | — | Translucent amber liquid | Clear solid |
| Cure Type | — | UV / Visible light | — |
| Viscosity (25°C, 36 s⁻¹) | mPa·s (cP) | 9,000 | — |
| Specific Gravity | — | 1.1 | — |
| Shelf Life (8–28°C) | days | 360 | — |
| Tack Free Time (100 mW/cm²) | s | 15 | — |
| Depth of Cure (100 mW/cm², 15 s) | mm | 8.1 | — |
| Hardness (Shore D) | — | — | 70 |
| Glass Transition Temperature (Tg) | °C | — | 90 |
| Tensile Strength at Break | N/mm² | — | 25 |
| Elongation at Break | % | — | 210 |
| Volume Resistivity | ohm·cm | — | 1.8 × 10¹⁵ |
| Dielectric Constant (1 MHz) | — | — | 4.4 |
| Shear Strength (Steel–Glass) | N/mm² | — | 17 |
LOCTITE ECCOBOND UF 9000AG-061 is specifically formulated for FCBGA and Cu pillar flip chip packaging, ensuring robust solder joint encapsulation under extreme electrothermal cycling from -65 °C to 150 °C. Its superior capillary flow also optimizes throughput in automated assembly lines for high-density ICs.
BERGQUIST microTIM mTIM 1028 is purpose built for riding cage assemblies in servers, switches, and routers, interfacing with electroless nickel plated copper or aluminum heat sinks. It ensures stable operation in high power transceiver modules while also extending applicability to liquid cooling components, heat pipes, and fin based dissipative structures.
LOCTITE® ABLESTIK NCA 3218 is specifically formulated for ADAS optical modules, ensuring secure bonding in lens barrel to housing and lens housing to circuit board interfaces where dimensional accuracy and dielectric integrity are non negotiable.
Loctite® 3296, a dual cure (UV & thermal) adhesive, is engineered for active alignment assembly of ADAS cameras and LiDAR modules. Its optimized bonding to aluminum and FR4 substrates ensures secure fixation of optical components while enabling nanometer level alignment critical for high resolution imaging.
