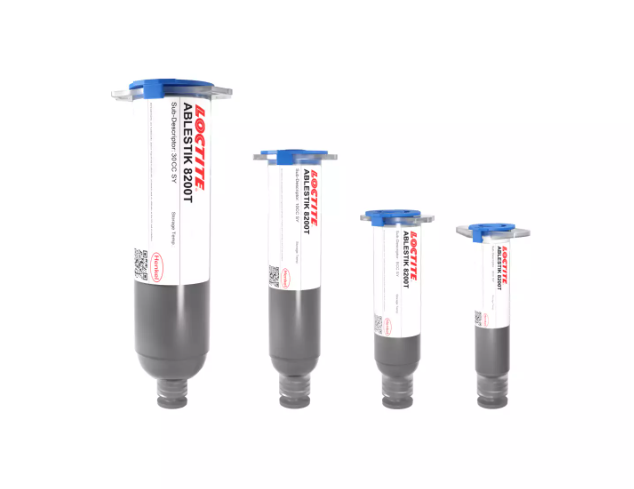

LOCTITE ABLESTIK 8200T is an electrically conductive die attach adhesive designed for high-reliability package applications. It features:
| Property | Value |
|---|---|
| Thixotropic Index (0.5/5 rpm) | 4.8 |
| Viscosity (Brookfield CP51, 5 rpm, 25°C) | 9,000 mPa·s (cP) |
| Work Life @ 25°C | 24 hours |
| Shelf Life @ -40°C | 365 days |
| Property | Value |
|---|---|
| Physical Properties | |
| Coefficient of Thermal Expansion (CTE) | Below Tg: 61 ppm/°C, Above Tg: 195 ppm/°C |
| Glass Transition Temperature (Tg) | 241°C |
| Thermal Conductivity | 2.5 W/m-K |
| Moisture Absorption (@ 85°C/85% RH) | 0.3% |
| Mechanical Properties (Tensile Modulus, DMTA) | |
| @ -65°C | 9,356 N/mm² (1,356,973 psi) |
| @ 25°C | 7,840 N/mm² (1,137,096 psi) |
| @ 100°C | 6,337 N/mm² (919,104 psi) |
| @ 150°C | 5,092 N/mm² (738,532 psi) |
| @ 200°C | 3,356 N/mm² (486,746 psi) |
| @ 250°C | 2,921 N/mm² (423,655 psi) |
| @ 300°C | 4,345 N/mm² (630,189 psi) |
| Electrical Properties | |
| Volume Resistivity | 0.0001 ohm·cm |
| Test | Result |
|---|---|
| Die Shear Strength (3×3 mm Si die on Ag/Cu leadframe) | @ 25°C: 10 kg-f, @ 200°C: 7 kg-f, @ 250°C: 5.5 kg-f |
| Weight Loss on Cure | 7.0% |
BERGQUIST® GAP FILLER TGF 2900LVO, a silicone-based 2-component system, delivers optimized heat transfer across ultra-thin bondline interfaces. It is engineered for automotive control modules, high-throughput manufacturing lines, and electronics sensitive to siloxane outgassing, ensuring stable operation in environments spanning -40 °C to +150 °C.
BERGQUIST® LIQUI FORM TLF 10000 addresses critical hotspots in RRU/AAU/BBU units, EV battery packs, 5G antenna modules, industrial controllers, and compact PCBs while stabilizing vertical gaps ≤2.5 mm and preserving electrostatic reliability.
TECHNOMELT® Low Pressure Molding polyamides deliver precision encapsulation of PCBs, PCBAs, connectors, sensors, power modules, LEDs, HVAC controllers, and wearable medical devices, while also enabling leakproof integration in liquid-delivery systems.
Huntsman ARALDITE® systems are designed for • Rotor potting to replace permanent magnets in magnetless motor concepts • Stator encapsulation for enhanced coil protection • High voltage impregnation processes ensuring worker safety and long term adhesion.
