1. Product Overview

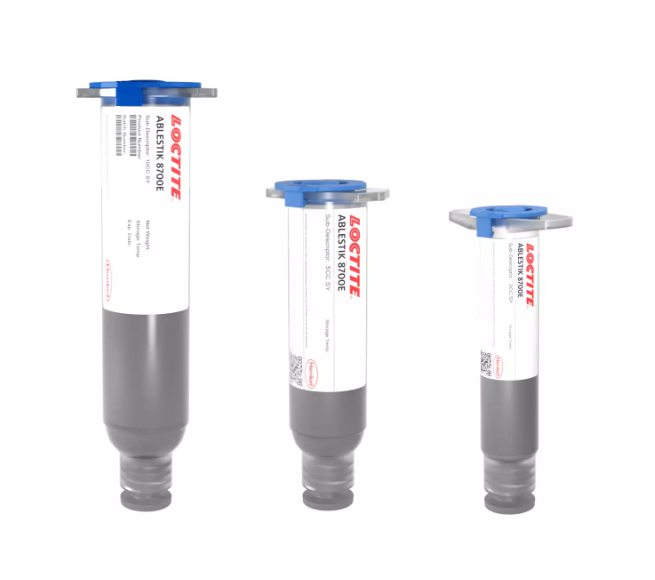

LOCTITE ABLESTIK 8700E is a silver-colored, electrically and thermally conductive epoxy adhesive designed for hybrid component attachment. It offers excellent adhesion, high shear strength after thermal cycling, and superior dispensing and printing characteristics. It meets MIL-STD-883, Method 5011 requirements.
2. Applications
3. Typical Properties
| Property | Value |
|---|---|
| Uncured Properties | |
| Thixotropic Index (0.5/5 rpm) | 3.0 |
| Viscosity (Brookfield, 25°C, 5 rpm) | 18,000 mPa·s (cP) |
| Work Life @ 25°C | 7 days |
| Shelf Life @ -40°C | 365 days |
| Curing Performance | |
| Standard Cure | 2 hours @ 160°C |
| Alternate Cure | 15 min ramp to 130°C + 1 hour @ 130°C + 15 min ramp to 160°C + 1 hour @ 160°C |
| Weight Loss on Cure | 2.6% |
| Cured Properties | |
| Coefficient of Thermal Expansion (ppm/°C) | 45 (Below Tg), 120 (Above Tg) |
| Glass Transition Temperature (Tg) | 160°C |
| Thermal Conductivity @ 121°C | 1.6 W/(m-K) |
| Tensile Modulus @ 25°C | 4,414 N/mm² (640,000 psi) |
| Extractable Ionic Content (ppm) | Cl-: 35, Na+: 5, K+: None Detected |
| Moisture Absorption @ 85°C/85% RH | 0.62% |
LOCTITE ECCOBOND UF 9000AG-061 is specifically formulated for FCBGA and Cu pillar flip chip packaging, ensuring robust solder joint encapsulation under extreme electrothermal cycling from -65 °C to 150 °C. Its superior capillary flow also optimizes throughput in automated assembly lines for high-density ICs.
BERGQUIST microTIM mTIM 1028 is purpose built for riding cage assemblies in servers, switches, and routers, interfacing with electroless nickel plated copper or aluminum heat sinks. It ensures stable operation in high power transceiver modules while also extending applicability to liquid cooling components, heat pipes, and fin based dissipative structures.
LOCTITE® ABLESTIK NCA 3218 is specifically formulated for ADAS optical modules, ensuring secure bonding in lens barrel to housing and lens housing to circuit board interfaces where dimensional accuracy and dielectric integrity are non negotiable.
Loctite® 3296, a dual cure (UV & thermal) adhesive, is engineered for active alignment assembly of ADAS cameras and LiDAR modules. Its optimized bonding to aluminum and FR4 substrates ensures secure fixation of optical components while enabling nanometer level alignment critical for high resolution imaging.
