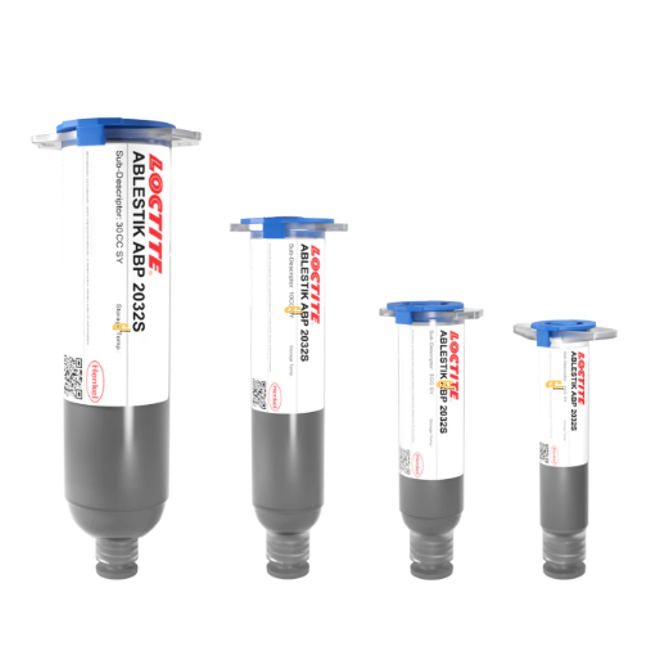

• Item Name: LOCTITE ABLESTIK ABP 2032S
• Manufacturer: Henkel
• Technologies: Epoxy
• Color: Silver
• Cure Type: Heat cure
• Package Size: Contact to Techniq VN for details.
• Shelf Life: 12 months
LOCTITE ABLESTIK ABP 2032S is a silver-filled epoxy adhesive designed as a lead-free, electrically conductive alternative to solder. It cures rapidly at low temperatures, providing good stress control for large die packages. The adhesive exhibits strong adhesion, excellent dispensing characteristics, and is compatible with substrates including gold, steel, and silver.
Die attach in semiconductor packages
Pb-free solder replacement
Large die size package bonding on Au, Steel, and Ag substrates
| Property | Before Mixing | After Mixing / Cured |
|---|---|---|
| Appearance | Silver paste | Silver solid |
| Viscosity (Brookfield CP51, 25°C, 5 rpm) | 11,000 mPa·s | – |
| Thixotropic Index (0.5/5 rpm) | 4.5 | – |
| Work Life @ 25°C | 24 hours | – |
| Shelf Life @ -40°C | 365 days | – |
| Cure Schedule | – | 60 min @ 80°C (alt: 3 min @ 150°C, 10 min @ 120°C) |
| Weight Loss on Cure | – | 0.7% |
| Glass Transition Temperature (Tg) | – | 110°C |
| Coefficient of Thermal Expansion | – | Below Tg: 54 ppm/°C, Above Tg: 162 ppm/°C |
| Thermal Conductivity | – | 1 W/(m·K) |
| Extractable Ionic Content | – | Cl⁻ <30 ppm, Na⁺ <20 ppm, K⁺ <20 ppm |
| Dynamic Tensile Modulus (DMA) | – | 25°C: 4,600 N/mm², 100°C: 1,200 N/mm², 250°C: 150 N/mm² |
| Volume Resistivity @ 25°C | – | 0.0002 ohm·cm |
| Die Shear Strength @ 25°C | – | Au: 16 kg-f, Steel: 15.5 kg-f, Ag: 16 kg-f |
LOCTITE ECCOBOND UF 9000AG-061 is specifically formulated for FCBGA and Cu pillar flip chip packaging, ensuring robust solder joint encapsulation under extreme electrothermal cycling from -65 °C to 150 °C. Its superior capillary flow also optimizes throughput in automated assembly lines for high-density ICs.
BERGQUIST microTIM mTIM 1028 is purpose built for riding cage assemblies in servers, switches, and routers, interfacing with electroless nickel plated copper or aluminum heat sinks. It ensures stable operation in high power transceiver modules while also extending applicability to liquid cooling components, heat pipes, and fin based dissipative structures.
LOCTITE® ABLESTIK NCA 3218 is specifically formulated for ADAS optical modules, ensuring secure bonding in lens barrel to housing and lens housing to circuit board interfaces where dimensional accuracy and dielectric integrity are non negotiable.
Loctite® 3296, a dual cure (UV & thermal) adhesive, is engineered for active alignment assembly of ADAS cameras and LiDAR modules. Its optimized bonding to aluminum and FR4 substrates ensures secure fixation of optical components while enabling nanometer level alignment critical for high resolution imaging.
