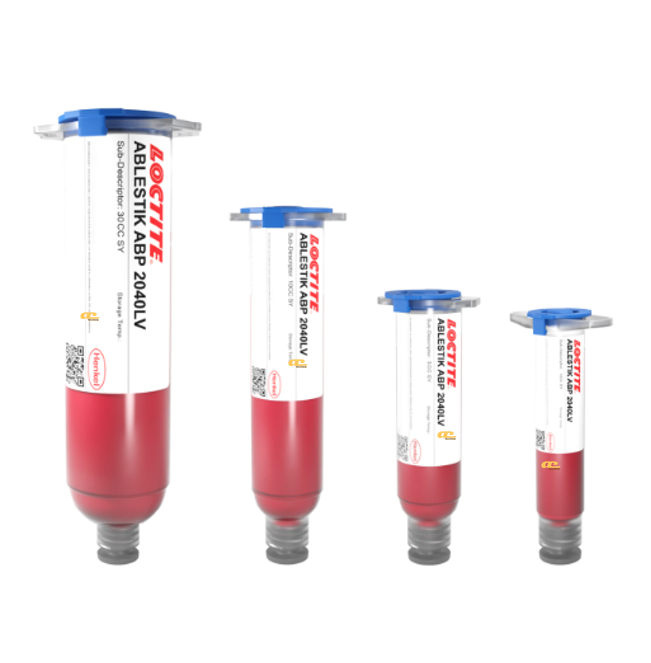

• Item Name: LOCTITE ABLESTIK ABP 2040LV
• Manufacturer: Henkel
• Technologies: Epoxy
• Color: Red
• Cure Type: Heat cure
• Package Size: Contact to Techniq VN for details.
• Shelf Life: 12 months
LOCTITE ABLESTIK ABP 2040LV is a red, single-component, non-conductive epoxy die attach adhesive. It is designed for high-throughput die attach applications, minimizing stress and warpage between dissimilar surfaces, making it suitable for camera module image sensors and similar assemblies.
Non-conductive die attach
High-throughput manufacturing
Substrates: plastics and metals
Camera module image sensors
| Property | Uncured | Cured |
|---|---|---|
| Appearance | Red | – |
| Technology | Epoxy | – |
| Viscosity, Brookfield CP51, 25°C, mPa·s (5 rpm) | 11,000 | – |
| Thixotropic Index (0.5/5 rpm) | 5.1 | – |
| Work Life @ 25°C | 3 days | – |
| Shelf Life @ -40°C | 365 days | – |
| Snap Cure Schedule | 2 min @ 120°C or 1 min @ 150°C | – |
| Alternate Cure Schedule | Oven: 30 min @ 80°C | – |
| Glass Transition Temperature (Tg, °C) | – | 28 |
| Coefficient of Thermal Expansion (ppm/°C) | – | Below Tg: 39; Above Tg: 129 |
| DMA Modulus @ 25°C / 150°C / 250°C (N/mm² / psi) | – | 2,603 / 5 / 7 (377,533 / 725 / 1,015) |
| Thermal Conductivity (W/m·K) | – | 0.4 |
| Extractable Ionic Content (ppm) | – | Cl⁻: 105; Na⁺: 0.08; K⁺: N/D |
| Die Shear Strength (kg-f, 2×2 mm Si on PBGA) | – | 25°C: 13; 200°C: 2.0 |
| Chip Warpage (µm) | – | 2 (6×6×0.152 mm Si on 0.26 mm BT substrate, cured 120 s @ 120°C) |
