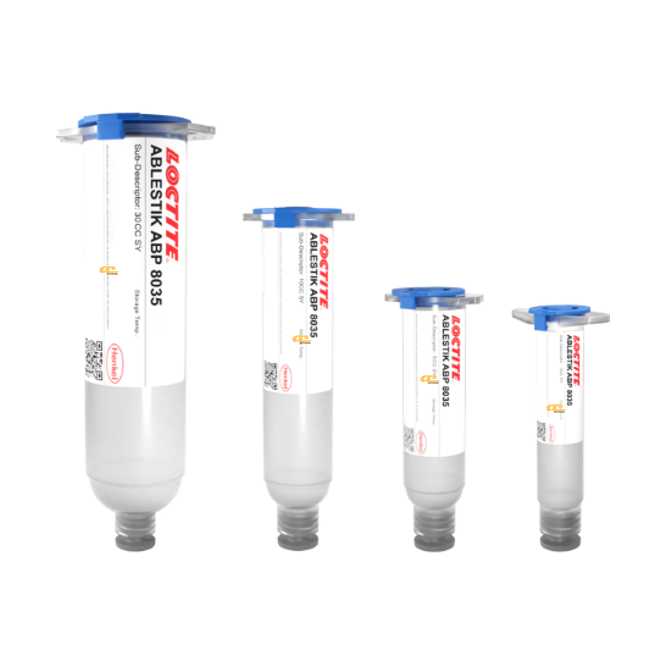

• Item Name: LOCTITE ABLESTIK ABP 8035
• Manufacturer: Henkel
• Technologies: Silicone
• Color: Colorless transparent liquid
• Cure Type: Heat cure
• Package Size: Contact to Techniq VN for details.
• Shelf Life: 6 months
LOCTITE ABLESTIK ABP 8035 is a silicone-based, non-conductive die attach adhesive specifically formulated for high-brightness LED applications. It delivers excellent adhesion at elevated temperatures, high heat and UV resistance, and anti-yellowing properties, making it ideal for wirebonding and automated dispensing processes.
LED die attach in high-brightness LED assemblies
Semiconductor material adhesion
Pin-transfer and automated dispense applications requiring high thermal stability
| Property | Unit | Value |
|---|---|---|
| Appearance | – | Colorless transparent liquid |
| Viscosity, Brookfield CP51, 25°C, 5 rpm | mPa·s (cP) | 7,880 |
| Work Life @ 25°C | hours | 24 |
| Shelf Life @ -20°C | days | 183 |
| Cure Schedule | – | 1 hour @ 150°C or 175°C |
| Weight Loss on Cure | % | <3 |
| Coefficient of Thermal Expansion, above Tg | ppm/°C | 268 |
| Glass Transition Temperature (Tg) | °C | -56 |
| Thermal Conductivity | W/m·K | 0.2 |
| Light Transmittance | % | Initial >90; After heat/UV aging >85 |
| Die Shear Strength 2×2 mm Au to Au @ 25°C | Kg-f | 2.8 |
LOCTITE ECCOBOND UF 9000AG-061 is specifically formulated for FCBGA and Cu pillar flip chip packaging, ensuring robust solder joint encapsulation under extreme electrothermal cycling from -65 °C to 150 °C. Its superior capillary flow also optimizes throughput in automated assembly lines for high-density ICs.
BERGQUIST microTIM mTIM 1028 is purpose built for riding cage assemblies in servers, switches, and routers, interfacing with electroless nickel plated copper or aluminum heat sinks. It ensures stable operation in high power transceiver modules while also extending applicability to liquid cooling components, heat pipes, and fin based dissipative structures.
LOCTITE® ABLESTIK NCA 3218 is specifically formulated for ADAS optical modules, ensuring secure bonding in lens barrel to housing and lens housing to circuit board interfaces where dimensional accuracy and dielectric integrity are non negotiable.
Loctite® 3296, a dual cure (UV & thermal) adhesive, is engineered for active alignment assembly of ADAS cameras and LiDAR modules. Its optimized bonding to aluminum and FR4 substrates ensures secure fixation of optical components while enabling nanometer level alignment critical for high resolution imaging.
