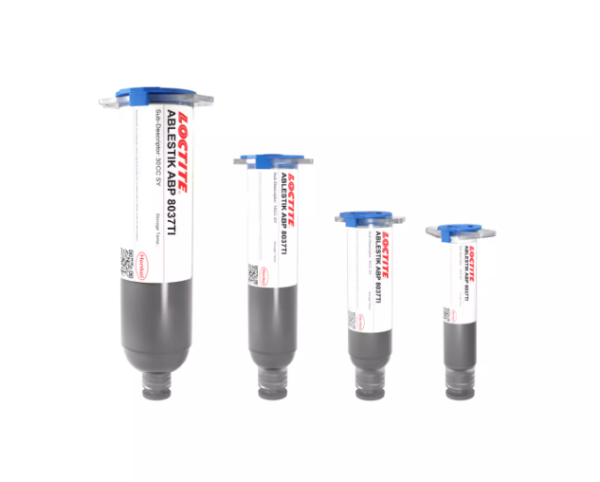

• Item Name: LOCTITE ABLESTIK ABP 8037TI
• Manufacturer: Henkel
• Technologies: Acrylate-based, silver-filled conductive adhesive
• Color: Silver paste
• Cure Type: Heat cure
• Package Size: Contact to Techniq VN for details.
• Shelf Life: 12 months
LOCTITE ABLESTIK ABP 8037TI is a silver-filled conductive adhesive designed for die attach applications. It offers excellent electrical and thermal conductivity, strong adhesion, and stability at high temperatures.
| Property | Value |
|---|---|
| Uncured Properties | |
| Appearance | Silver paste |
| Filler Type | Silver |
| Filler Weight (%) | 82% |
| Viscosity (Brookfield, 25°C, Spindle 51, 5 rpm) | 11,000 mPa·s (cP) |
| Thixotropic Index (0.5/5 rpm) | 5.8 |
| Work Life @ 25°C | 24 hours |
| Shelf Life @ -40°C | 365 days |
| Curing Performance | |
| Recommended Cure | 30 min ramp to 175°C, hold 30 min @ 175°C |
| Alternate Cure | 30 min ramp to 150°C, hold 30 min @ 150°C |
| Cured Properties | |
| Glass Transition Temperature (Tg) | 46°C |
| Thermal Conductivity | 4.1 W/(m·K) |
| Coefficient of Thermal Expansion (CTE) Below Tg | 62 ppm/°C |
| CTE Above Tg | 94 ppm/°C |
| Mechanical Properties | |
| Young’s Modulus (E) @ 25°C | 5,900 N/mm² (855,722 psi) |
| Young’s Modulus (E) @ 150°C | 2,900 N/mm² (420,609 psi) |
| Electrical Properties | |
| Volume Resistivity | 6.00 × 10⁻⁵ ohm·cm |
| Shear Strength | |
| Die Shear Strength @ 25°C (Ag/Cu LF, 120×120 mil) | 17.6 Kg |
| Die Shear Strength @ 270°C (Ag/Cu LF, 120×120 mil) | 7.4 Kg |
LOCTITE ECCOBOND UF 9000AG-061 is specifically formulated for FCBGA and Cu pillar flip chip packaging, ensuring robust solder joint encapsulation under extreme electrothermal cycling from -65 °C to 150 °C. Its superior capillary flow also optimizes throughput in automated assembly lines for high-density ICs.
BERGQUIST microTIM mTIM 1028 is purpose built for riding cage assemblies in servers, switches, and routers, interfacing with electroless nickel plated copper or aluminum heat sinks. It ensures stable operation in high power transceiver modules while also extending applicability to liquid cooling components, heat pipes, and fin based dissipative structures.
LOCTITE® ABLESTIK NCA 3218 is specifically formulated for ADAS optical modules, ensuring secure bonding in lens barrel to housing and lens housing to circuit board interfaces where dimensional accuracy and dielectric integrity are non negotiable.
Loctite® 3296, a dual cure (UV & thermal) adhesive, is engineered for active alignment assembly of ADAS cameras and LiDAR modules. Its optimized bonding to aluminum and FR4 substrates ensures secure fixation of optical components while enabling nanometer level alignment critical for high resolution imaging.
