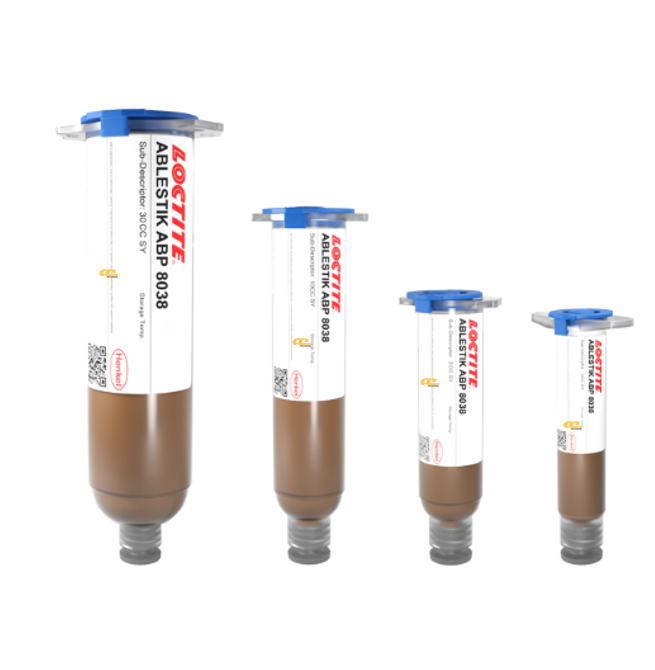

• Item Name: LOCTITE ABLESTIK ABP 8038
• Manufacturer: Henkel
• Technologies: Acrylate
• Color: Gold
• Cure Type: Heat cure
• Package Size: Contact to Techniq VN for details.
• Shelf Life: 12 months
LOCTITE ABLESTIK ABP 8038 is a gold and palladium-filled acrylate adhesive formulated for high-reliability die attach applications in leadframe packaging. It delivers excellent electrical and thermal conductivity, superior die shear strength, and improved workability. By replacing silver with gold and palladium, the adhesive eliminates silver migration concerns, ensuring long-term performance and stability in sensitive electronic assemblies.
Die attach for PPF and Au leadframe substrates
High-reliability electronic packaging
Soft solder replacement in applications requiring elimination of silver migration
| Property | Unit | Still Not Mixed | After Mixed |
|---|---|---|---|
| Thixotropic Index (0.5/5 rpm) | – | 4.2 | – |
| Viscosity, Brookfield CP51, 25°C, 5 rpm | mPa·s (cP) | 10,000 | – |
| Work Life @ 25°C | hours | 24 | – |
| Shelf Life @ -40°C | days | 365 | – |
| Cure Schedule | – | 30 min ramp to 175°C + 30 min @175°C | – |
| Coefficient of Thermal Expansion, below Tg | ppm/°C | – | 36 |
| Coefficient of Thermal Expansion, above Tg | ppm/°C | – | 80 |
| Glass Transition Temperature (Tg) | °C | – | 20 |
| Thermal Conductivity | W/(m·K) | – | 1.75 |
| DSC On-set Temperature | °C | – | 140 |
| DSC Peak Temperature | °C | – | 155 |
| Extractable Ionic Content @100°C | ppm | – | Cl- 25, Na+ 5, K+ 2 |
| Weight Loss @ 300°C | % | – | 0.5 |
| Moisture Absorption @85°C/85% RH | % | – | 0.37 |
| Volume Resistivity | ohm·cm | – | 0.0008 |
| Die Shear Strength 2×2 mm Au to Au @25°C | kg-f | – | 8 |
| Die Shear Strength 2×2 mm Au to Au @250°C | kg-f | – | 3.5 |
LOCTITE ECCOBOND UF 9000AG-061 is specifically formulated for FCBGA and Cu pillar flip chip packaging, ensuring robust solder joint encapsulation under extreme electrothermal cycling from -65 °C to 150 °C. Its superior capillary flow also optimizes throughput in automated assembly lines for high-density ICs.
BERGQUIST microTIM mTIM 1028 is purpose built for riding cage assemblies in servers, switches, and routers, interfacing with electroless nickel plated copper or aluminum heat sinks. It ensures stable operation in high power transceiver modules while also extending applicability to liquid cooling components, heat pipes, and fin based dissipative structures.
LOCTITE® ABLESTIK NCA 3218 is specifically formulated for ADAS optical modules, ensuring secure bonding in lens barrel to housing and lens housing to circuit board interfaces where dimensional accuracy and dielectric integrity are non negotiable.
Loctite® 3296, a dual cure (UV & thermal) adhesive, is engineered for active alignment assembly of ADAS cameras and LiDAR modules. Its optimized bonding to aluminum and FR4 substrates ensures secure fixation of optical components while enabling nanometer level alignment critical for high resolution imaging.
