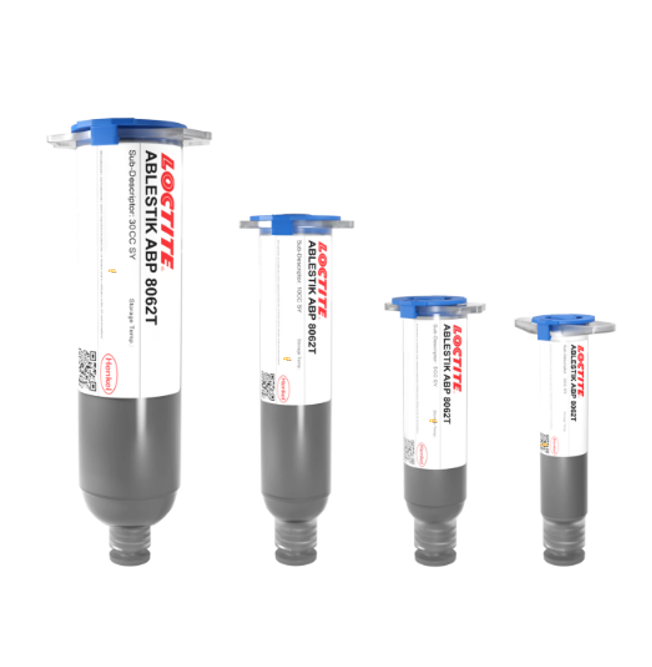

• Item Name: LOCTITE ABLESTIK ABP 8062T
• Manufacturer: Henkel
• Technologies: BMI Hybrid
• Color: Silver paste
• Cure Type: Heat cure
• Package Size: Contact to Techniq VN for details.
• Shelf Life: 12 months
LOCTITE ABLESTIK ABP 8062T is a silver, BMI hybrid die attach adhesive engineered for high thermal and electrical conductivity. Heat-curable and hydrophobic, it is stable at elevated temperatures and suitable for small to medium die sizes. The material is designed to provide reliable heat transfer for power devices and can be used as a soft solder alternative, ensuring high performance in demanding electronic applications.
Die attach for integrated circuits and MOSFETs
Soft solder replacement in high thermal/electrical conductivity applications
High reliability semiconductor packaging
Not Mixed / Uncured Material
| Property | Value |
|---|---|
| Thixotropic Index (0.5/5 rpm) | 6.1 |
| Viscosity, Brookfield CP51 @ 25°C (5 rpm), mPa·s (cP) | 15,000 |
| Filler Content | 85% |
| Work Life @ 25°C | 24 hours |
| Shelf Life @ -40°C | 365 days |
| Flash Point | See SDS |
After Mixed / Cured Material
| Property | Value |
|---|---|
| Coefficient of Thermal Expansion Alpha 1 | 100 ppm/°C |
| Coefficient of Thermal Expansion Alpha 2 | 150 ppm/°C |
| Tensile Modulus @ 25°C | 4,330 N/mm² |
| Tensile Modulus @ 250°C | 1,380 N/mm² |
| Thermal Conductivity | 24 W/(m-K) |
| Extractable Ionic Content (Cl⁻/Na⁺/K⁺) | <10 ppm each |
| Volume Resistivity | 5×10⁻⁵ ohm·cm |
| Die Shear Strength 2×2 mm Bare Si Die | 25°C: >6.0 Kg; 260°C: >2.5 Kg |
| Die Shear Strength 1×1 mm Ag Backmetal Die | 25°C: >1.5 Kg; 260°C: >1.1 Kg |
LOCTITE ECCOBOND UF 9000AG-061 is specifically formulated for FCBGA and Cu pillar flip chip packaging, ensuring robust solder joint encapsulation under extreme electrothermal cycling from -65 °C to 150 °C. Its superior capillary flow also optimizes throughput in automated assembly lines for high-density ICs.
BERGQUIST microTIM mTIM 1028 is purpose built for riding cage assemblies in servers, switches, and routers, interfacing with electroless nickel plated copper or aluminum heat sinks. It ensures stable operation in high power transceiver modules while also extending applicability to liquid cooling components, heat pipes, and fin based dissipative structures.
LOCTITE® ABLESTIK NCA 3218 is specifically formulated for ADAS optical modules, ensuring secure bonding in lens barrel to housing and lens housing to circuit board interfaces where dimensional accuracy and dielectric integrity are non negotiable.
Loctite® 3296, a dual cure (UV & thermal) adhesive, is engineered for active alignment assembly of ADAS cameras and LiDAR modules. Its optimized bonding to aluminum and FR4 substrates ensures secure fixation of optical components while enabling nanometer level alignment critical for high resolution imaging.
