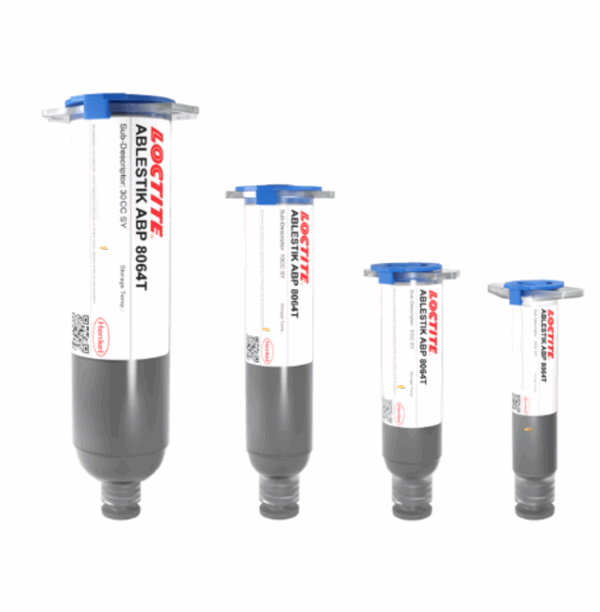

• Item Name: LOCTITE ABLESTIK ABP 8064T
• Manufacturer: Henkel
• Technologies: Hybrid chemistry
• Color: Silver
• Cure Type: Heat cure
• Package Size: Contact to Techniq VN for details.
• Shelf Life: 12 months
LOCTITE ABLESTIK ABP 8064T is a silver, conductive hybrid-chemistry adhesive designed for die attach applications requiring high thermal and electrical conductivity. It is suitable as a soft solder replacement and is stable at high temperatures with low outgassing, meeting NASA outgassing standards.
Die attach for QFP and high-power devices
Integrated circuit attachment onto metal leadframes
Wide range of package sizes
High-reliability applications where thermal/electrical conductivity is critical
| Property | Uncured Material | Cured Material |
|---|---|---|
| Appearance | Silver | – |
| Technology | Hybrid chemistry | – |
| Cure Type | Heat cure | – |
| Filler Content (%) | 85 | – |
| Viscosity, Brookfield CP51 @ 25°C (mPa·s) | 12,000 @ 5 rpm | – |
| Thixotropic Index (0.5/5 rpm) | 5.8 | – |
| Work Life @ 25°C | 24 hours | – |
| Shelf Life @ -40°C | 365 days | – |
| Cure Schedule | 60 min ramp to 180°C + 60 min hold; alt: 60 min ramp to 140°C + 60 min hold in N2 oven | – |
| Glass Transition Temperature (°C) | – | 44.5 |
| Coefficient of Thermal Expansion (ppm/°C) | – | Alpha 1: 47; Alpha 2: 136 |
| Tensile Modulus (N/mm²) | – | 5,260 @ 25°C; 1,280 @ 250°C |
| Thermal Conductivity (W/m·K) | – | 22 |
| Volume Resistivity (ohm-cm) | – | 2.0×10⁻⁵ |
| Extractable Ionic Content (ppm) | – | Cl⁻ <10, Na⁺ <10, K⁺ <10 |
| Die Shear Strength (kg) | – | 3×3 mm Si die on PPF LF: 12.18 @25°C, 5.6 @260°C; 5×5 mm: 12.19 @260°C; 8×8 mm: 18.54 @260°C |
| Outgassing Properties (%) | – | TML: 0.25; CVCM: 0.05; WVR: 0.02 |
LOCTITE ECCOBOND UF 9000AG-061 is specifically formulated for FCBGA and Cu pillar flip chip packaging, ensuring robust solder joint encapsulation under extreme electrothermal cycling from -65 °C to 150 °C. Its superior capillary flow also optimizes throughput in automated assembly lines for high-density ICs.
BERGQUIST microTIM mTIM 1028 is purpose built for riding cage assemblies in servers, switches, and routers, interfacing with electroless nickel plated copper or aluminum heat sinks. It ensures stable operation in high power transceiver modules while also extending applicability to liquid cooling components, heat pipes, and fin based dissipative structures.
LOCTITE® ABLESTIK NCA 3218 is specifically formulated for ADAS optical modules, ensuring secure bonding in lens barrel to housing and lens housing to circuit board interfaces where dimensional accuracy and dielectric integrity are non negotiable.
Loctite® 3296, a dual cure (UV & thermal) adhesive, is engineered for active alignment assembly of ADAS cameras and LiDAR modules. Its optimized bonding to aluminum and FR4 substrates ensures secure fixation of optical components while enabling nanometer level alignment critical for high resolution imaging.
