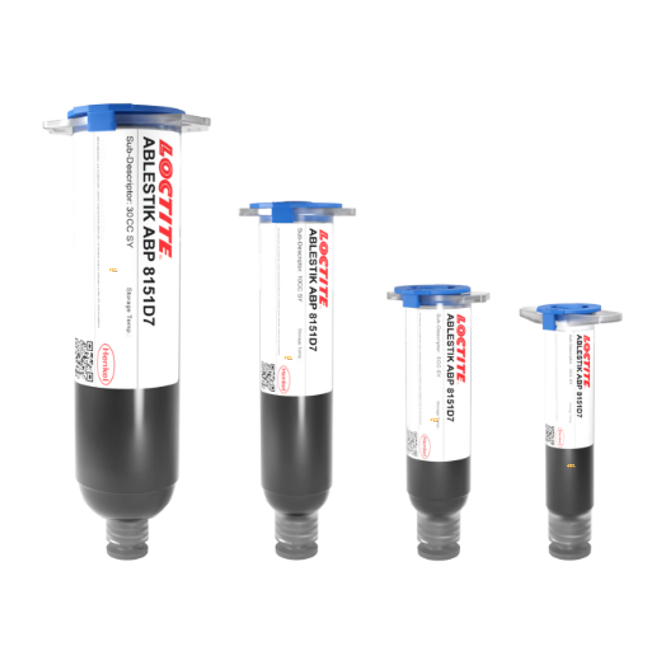

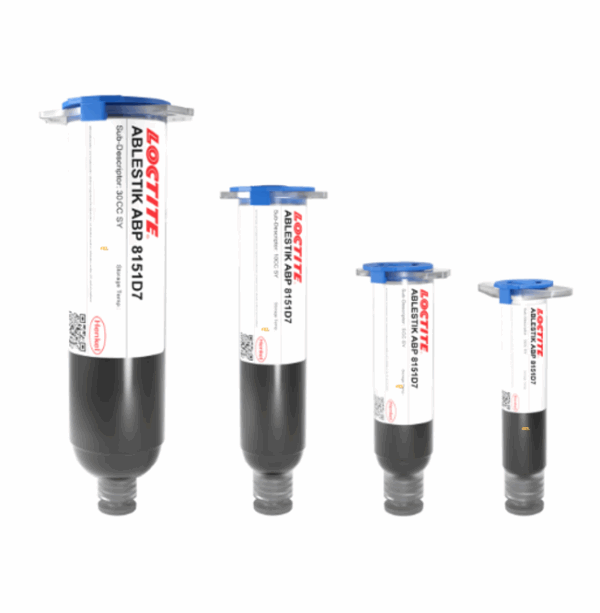

• Item Name: LOCTITE ABLESTIK ABP 8151D7
• Manufacturer: Henkel
• Technologies: Silicone
• Color: Black
• Cure Type: Heat cure
• Package Size: Contact to Techniq VN for details.
• Shelf Life: 12 months
LOCTITE ABLESTIK ABP 8151D7 is a silicone-based, electrically non-conductive die attach adhesive engineered for MEMs package applications. It combines low modulus with low-temperature cure capability, enabling safe bonding of delicate microelectromechanical structures while maintaining mechanical compliance.
Die attach for MEMs packages
Low-stress applications where delicate or fragile dies require protection
Automated or manual dispensing in precision microelectronics
| Property | Unit | Value |
|---|---|---|
| Appearance | – | Black liquid |
| Technology | – | Silicone |
| Viscosity, Brookfield CP51, 25°C, 5 rpm | mPa·s (cP) | 12,000 |
| Thixotropic Index | – | 3.5 |
| Work Life @ 25°C | hours | 48 |
| Shelf Life @ -20°C | days | 365 |
| Cure Schedule | – | 30 min ramp to 150°C, hold 30 min |
| Alternate Cure | – | 30 min ramp to 80°C, hold 120 min |
| Hardness, Shore A | – | 80 |
| Dynamic Tensile Modulus @ 25°C | N/mm² | 25.2 |
| Die Shear Strength 1×1 mm Si die on laminate | Kg | 1.5 |
LOCTITE ECCOBOND UF 9000AG-061 is specifically formulated for FCBGA and Cu pillar flip chip packaging, ensuring robust solder joint encapsulation under extreme electrothermal cycling from -65 °C to 150 °C. Its superior capillary flow also optimizes throughput in automated assembly lines for high-density ICs.
BERGQUIST microTIM mTIM 1028 is purpose built for riding cage assemblies in servers, switches, and routers, interfacing with electroless nickel plated copper or aluminum heat sinks. It ensures stable operation in high power transceiver modules while also extending applicability to liquid cooling components, heat pipes, and fin based dissipative structures.
LOCTITE® ABLESTIK NCA 3218 is specifically formulated for ADAS optical modules, ensuring secure bonding in lens barrel to housing and lens housing to circuit board interfaces where dimensional accuracy and dielectric integrity are non negotiable.
Loctite® 3296, a dual cure (UV & thermal) adhesive, is engineered for active alignment assembly of ADAS cameras and LiDAR modules. Its optimized bonding to aluminum and FR4 substrates ensures secure fixation of optical components while enabling nanometer level alignment critical for high resolution imaging.
