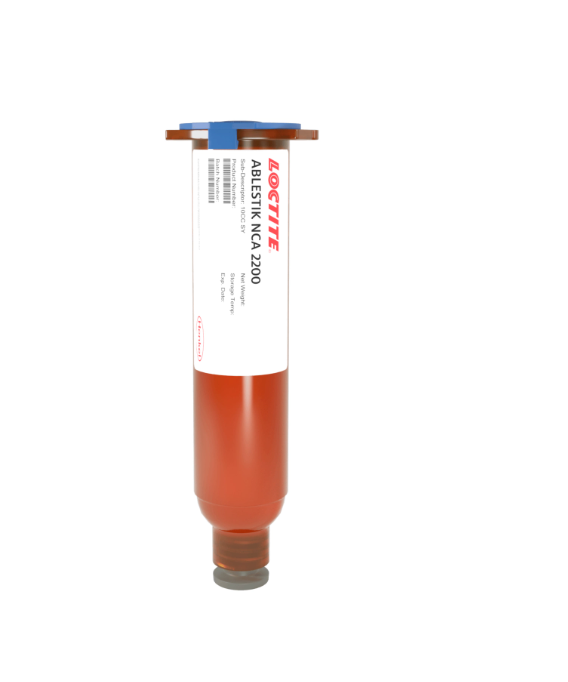

LOCTITE ABLESTIK NCA 2200 is a one-component, acrylated epoxy adhesive with a dual-cure system (UV + heat). It is designed for temperature-sensitive electronic components, offering low viscosity, fast curing at low temperatures, and strong adhesion to ceramics, LCP, and stainless steel.
| Uncured Properties | Value |
|---|---|
| Appearance | Light yellow liquid |
| Viscosity @ 25°C | 22,000 mPa·s |
| Thixotropic Index | 2 |
| Specific Gravity | 1.3 g/cm³ |
| Pot Life @ 25°C | 3 days |
| Shelf Life @ -20°C | 365 days |
| Curing Conditions | Value |
|---|---|
| UV Cure Light Source | High-pressure mercury lamp (220-380 nm) |
| UV Light Intensity | 100 mW/cm² |
| UV Exposure Time | 2 sec |
| Heat Cure | 30 min @ 80°C |
| Cured Properties | Value |
|---|---|
| Hardness (Shore D) | 90 |
| Glass Transition Temperature (Tg) | 97°C |
| Modulus @ 25°C | 5 GPa |
| Coefficient of Thermal Expansion | 43 ppm/°C (below Tg), 150 ppm/°C (above Tg) |
| Shear Strength (Die Shear Test) | Value |
|---|---|
| LCP, SiN Chip | 20 N/mm² (2,900 psi) |
| SUS304, SiN Chip | 50 N/mm² (7,251 psi) |
