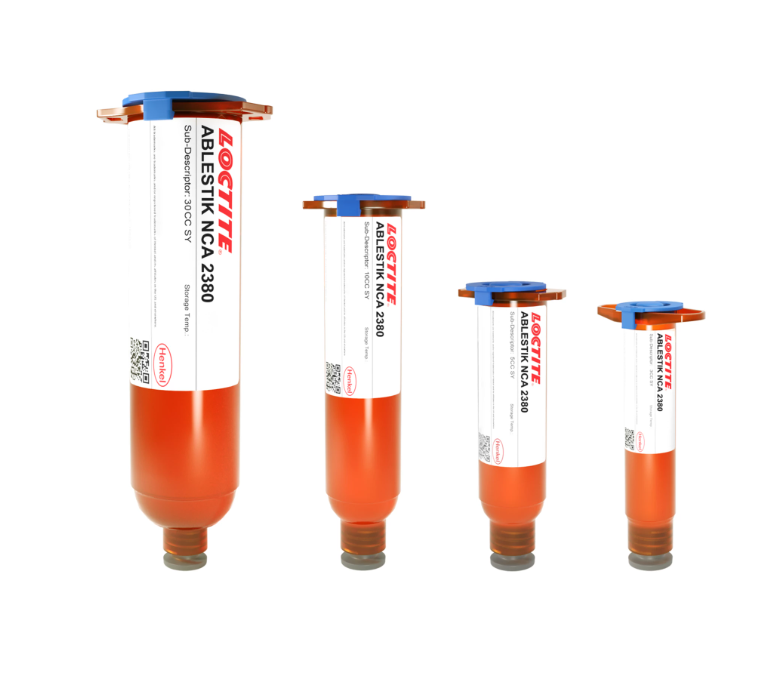

LOCTITE ABLESTIK NCA 2380 is a dual-cure acrylated epoxy adhesive designed for active alignment camera module assembly. It offers UV light activation for temporary cure, followed by a low-temperature thermal cure for final bonding. Key benefits include:
| Property | Value |
|---|---|
| Appearance | Light yellow liquid |
| Technology | Acrylated Epoxy |
| Viscosity (10 s⁻¹ shear rate) | 35,000 mPa·s (cP) |
| Thixotropic Index | 2.4 |
| Work Life @ 25°C | 3 days |
| Shelf Life @ -20°C | 180 days |
| Cure Type | Conditions |
|---|---|
| Primary UV Cure | 220–405 nm UV LED, 1,000 mW/cm² for 3 sec |
| Secondary Thermal Cure | 60 minutes @ 80°C |
| Property | Value |
|---|---|
| Hardness (Shore D) | 85 |
| Glass Transition Temperature (Tg) | 95°C |
| Coefficient of Thermal Expansion (CTE) | Below Tg: 56 ppm/°C Above Tg: 183 ppm/°C |
| Storage Modulus | 3 GPa |
| Extractable Ionic Content (Cl⁻) | 376 ppm |
| Test Condition | Shear Strength (N/mm²) |
|---|---|
| Si die on glass (UV LED 365 nm, 1,000 mJ) | 4 |
| Si die on FR5 (Thermal Cure @ 90°C for 60 min) | 40 |
BERGQUIST® GAP FILLER TGF 2900LVO, a silicone-based 2-component system, delivers optimized heat transfer across ultra-thin bondline interfaces. It is engineered for automotive control modules, high-throughput manufacturing lines, and electronics sensitive to siloxane outgassing, ensuring stable operation in environments spanning -40 °C to +150 °C.
BERGQUIST® LIQUI FORM TLF 10000 addresses critical hotspots in RRU/AAU/BBU units, EV battery packs, 5G antenna modules, industrial controllers, and compact PCBs while stabilizing vertical gaps ≤2.5 mm and preserving electrostatic reliability.
TECHNOMELT® Low Pressure Molding polyamides deliver precision encapsulation of PCBs, PCBAs, connectors, sensors, power modules, LEDs, HVAC controllers, and wearable medical devices, while also enabling leakproof integration in liquid-delivery systems.
Huntsman ARALDITE® systems are designed for • Rotor potting to replace permanent magnets in magnetless motor concepts • Stator encapsulation for enhanced coil protection • High voltage impregnation processes ensuring worker safety and long term adhesion.
Techniq Vietnam provides end-to-end materials and process solutions, integrating world-class technologies in adhesives, soldering, and thermal management.
Through partnerships with leading global brands, we deliver high-value materials, expert consulting, and optimized supply chains ensuring timely delivery, efficiency, and sustainable growth for our clients.
At Techniq, our mission is to connect cutting-edge materials, processes, and equipment with customer needs, enabling efficiency, reliability, and long-term value creation.
