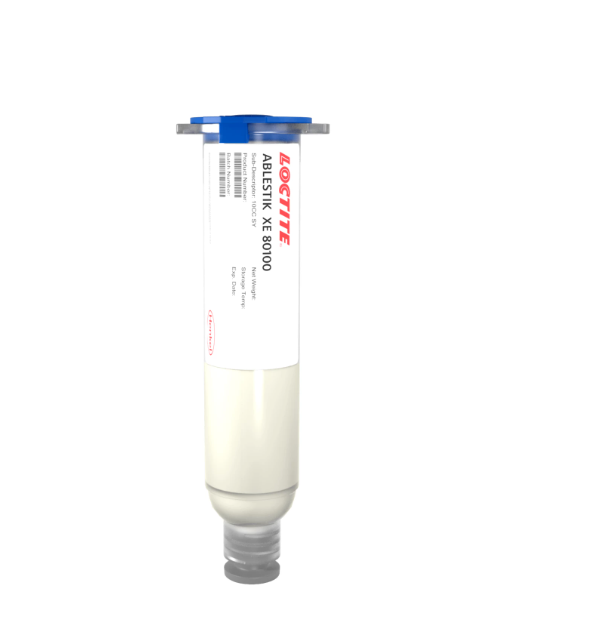

LOCTITE ABLESTIK XE 80100 is a one-component, solvent-free, modified epoxy adhesive with low stress and high flexibility, making it ideal for applications with mismatched coefficients of thermal expansion (CTE). It is the non-conductive version of ECCOBOND CE8500 and operates at temperatures from -45°C to +200°C.
| Property | Value |
|---|---|
| Viscosity @ 25°C | 12 mPa∙s (cP) |
| Density | 1.15 g/cm³ |
| Shelf Life @ -25 to -18°C | 183 days |
| Cure Schedule | Time |
|---|---|
| 120°C | 90 min |
| 150°C | 60 min |
| 175°C | 15 min |
| Property | Value |
|---|---|
| Hardness (Shore A) | 82 |
| Glass Transition Temperature (DMA) | 59°C |
| Glass Transition Temperature (TMA) | 45°C |
| Coefficient of Linear Thermal Expansion | 140 x 10⁻⁶ K⁻¹ |
| Young’s Modulus @ 25°C | 10 N/mm² (1,450 psi) |
| Young’s Modulus @ 50°C | 3 N/mm² (435 psi) |
| Young’s Modulus @ 100°C | 2 N/mm² (290 psi) |
| Ion | Content (ppm) |
|---|---|
| Chloride (Cl⁻) | 200 |
| Sodium (Na⁺) | 10 |
| Potassium (K⁺) | 10 |
| Ammonia (NH₃⁺) | 75 |
| Material | 25°C | 125°C |
|---|---|---|
| Al to Al | 5.2 N/mm² (754 psi) | 0.3 N/mm² (43.5 psi) |
| PBT to PBT | 1.6 N/mm² (232 psi) | 0.1 N/mm² (14.5 psi) |
LOCTITE ECCOBOND UF 9000AG-061 is specifically formulated for FCBGA and Cu pillar flip chip packaging, ensuring robust solder joint encapsulation under extreme electrothermal cycling from -65 °C to 150 °C. Its superior capillary flow also optimizes throughput in automated assembly lines for high-density ICs.
BERGQUIST microTIM mTIM 1028 is purpose built for riding cage assemblies in servers, switches, and routers, interfacing with electroless nickel plated copper or aluminum heat sinks. It ensures stable operation in high power transceiver modules while also extending applicability to liquid cooling components, heat pipes, and fin based dissipative structures.
LOCTITE® ABLESTIK NCA 3218 is specifically formulated for ADAS optical modules, ensuring secure bonding in lens barrel to housing and lens housing to circuit board interfaces where dimensional accuracy and dielectric integrity are non negotiable.
Loctite® 3296, a dual cure (UV & thermal) adhesive, is engineered for active alignment assembly of ADAS cameras and LiDAR modules. Its optimized bonding to aluminum and FR4 substrates ensures secure fixation of optical components while enabling nanometer level alignment critical for high resolution imaging.
