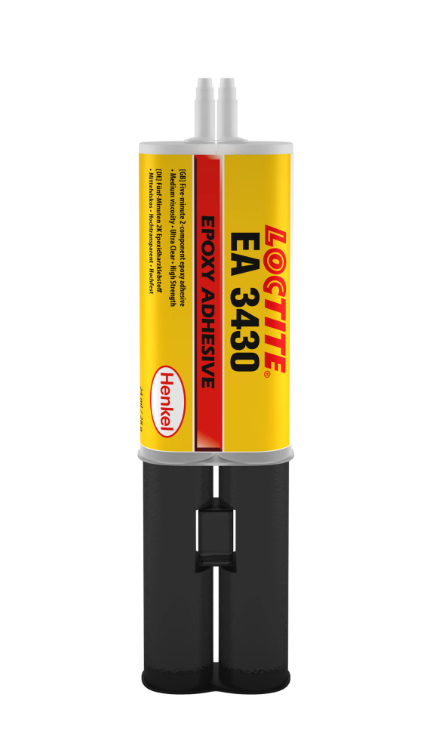

Loctite® EA 3430 is a two-component, ultra-clear epoxy adhesive designed for rapid curing at room temperature. It provides high bond strength on a variety of substrates, including metal, ceramic, rigid plastics, and wood. Its gap-filling properties make it ideal for bonding rough or poorly fitting surfaces.
| Property | Resin | Hardener | Mixture |
|---|---|---|---|
| Appearance | Ultra clear | Ultra clear | Ultra clear, Transparent |
| Specific Gravity (@25°C) | 1.14 – 1.2 | 1.14 – 1.2 | 1.14 – 1.2 |
| Viscosity (@25°C, mPa·s) | 18,000 – 28,000 | 18,000 – 28,000 | 18,000 – 28,000 |
| Mix Ratio (by volume) | 1:1 | – | – |
| Mix Ratio (by weight) | 100:100 | – | – |
| Gel Time (5g @ 25°C) | – | – | 5 – 10 min |
| Property | Value |
|---|---|
| Tensile Strength (ISO 527-3) | 36 N/mm² (5,220 psi) |
| Tensile Modulus (ISO 527-3) | 3,210 N/mm² (465,500 psi) |
| Compressive Strength (ISO 604) | 65 N/mm² (9,420 psi) |
| Elongation (ISO 527-3) | 2% |
| Shore Hardness (ISO 868) | 70D |
| Glass Transition Temperature (ASTM E 1640) | 58°C |
| Property | Value |
|---|---|
| Dielectric Breakdown Strength (IEC 60243-1) | 25 kV/mm |
| Volume Resistivity (IEC 60093) | 3×10¹⁵ Ω·cm |
| Surface Resistivity (IEC 60093) | 0.2×10¹⁸ Ω |
| Dielectric Constant (IEC 60250, 1 kHz) | 3.07 |
| Substrate | Strength (N/mm²) | Strength (psi) |
|---|---|---|
| Mild Steel (grit blasted) | 22 | 3,200 |
| Stainless Steel | 15 | 2,175 |
| Aluminum (Isopropanol wiped) | 7 | 1,010 |
| Aluminum (abraded) | 14 | 2,030 |
| Zinc Dichromate | 16 | 2,320 |
| Polycarbonate | 4 | 580 |
| ABS | 5 | 725 |
| PVC | 5 | 725 |
| GRP (Polyester Resin) | 3 | 435 |
| Softwood (Deal) | 8 | 1,160 |
| Hardwood (Teak) | 11 | 1,600 |
