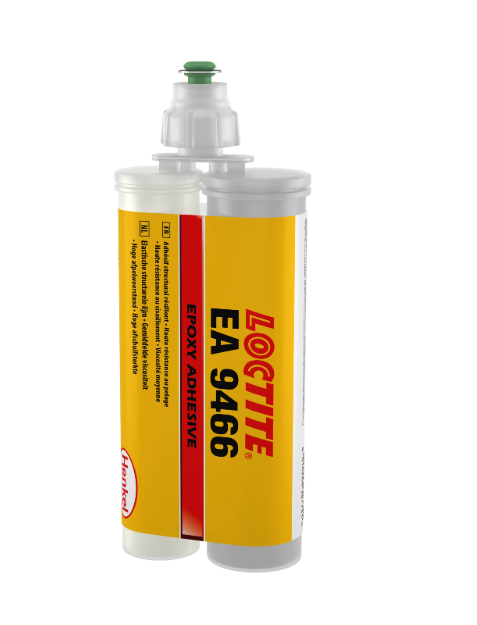

• Item Name: LOCTITE® EA 9466™
• Manufacturer: Henkel
• Technologies: Epoxy
• Color: Resin – White opaque paste, Hardener – White translucent liquid, Mixture – Off-white opaque paste
• Cure Type: Room temperature cure
• Package Size: Contact to Techniq VN for details.
• Shelf Life: Contact to Techniq VN for details.
1. Product Overview
LOCTITE® EA 9466™ is a toughened, industrial-grade epoxy adhesive with an extended work life. It cures at room temperature to form a tough, off-white bondline with high shear strength, excellent peel resistance, and resistance to chemicals and solvents. It also acts as an excellent electrical insulator and bonds well to various plastics and metals.
2. Applications
3. Typical Properties
| Property | Resin | Hardener | Mixed |
|---|---|---|---|
| Appearance | White opaque paste | White translucent liquid | Off-white opaque paste |
| Viscosity (mPa·s) | 15,000–50,000 | 25,000–60,000 | – |
| Specific Gravity @ 25°C | 1.0 | 1.0 | – |
| Mix Ratio (by weight) | 100:50 | – | – |
| Mix Ratio (by volume) | 2:1 | – | – |
| Working Life (minutes) | – | – | 60 |
| Property | Value |
|---|---|
| Glass Transition Temperature (°C) | 62 |
| Shore Hardness (D) | 60 |
| Elongation (%) | 3 |
| Tensile Strength (N/mm²) | 32 (4,640 psi) |
| Tensile Modulus (N/mm²) | 1,718 (249,110 psi) |
| Dielectric Breakdown Strength (kV/mm) | 30 |
| Substrate | Strength (N/mm²) | Strength (psi) |
|---|---|---|
| Grit-blasted Steel | 37.0 | 5,365 |
| Abraded Aluminum | 26.0 | 3,770 |
| Anodized Aluminum | 17.9 | 2,595 |
| Galvanized Steel (Hot Dipped) | 8.5 | 1,230 |
| Stainless Steel | 23.0 | 3,335 |
| Polycarbonate | 5.3 | 765 |
| Nylon | 1.6 | 230 |
| Wood (Fir) | 11.3 | 1,635 |
| GRP (Glass Reinforced Plastic) | 5.0 | 725 |
| ABS | 4.7 | 680 |
