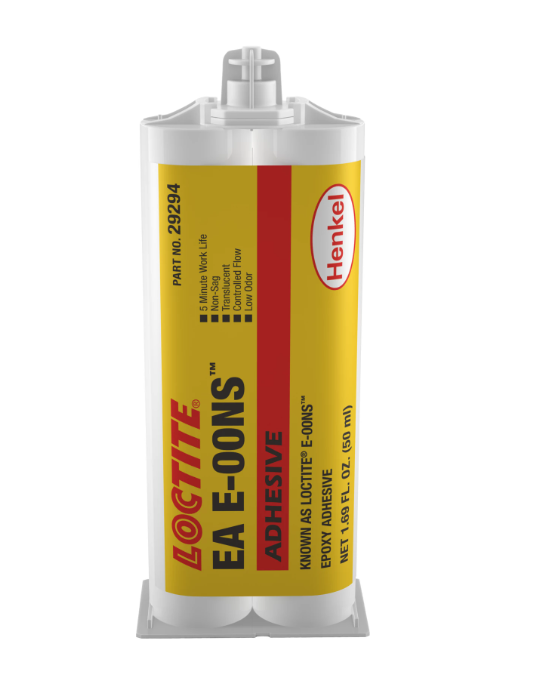

LOCTITE® EA E-00NS™ is a fast-setting, non-sagging, thixotropic, industrial-grade epoxy adhesive. It cures at room temperature to form a translucent, rigid, machinable bond line. It is resistant to chemicals and solvents and provides excellent electrical insulation. It is designed for applications such as component assembly, appliances, electronics, and fiber optics.
Key Features:
LOCTITE® EA E-00NS™ is suitable for bonding:
It is especially useful for vertical surface applications to prevent run-off, staking fillet bonds, and general industrial repairs.
| Property | Resin | Hardener | Mixture |
|---|---|---|---|
| Specific Gravity @ 25°C | 1.1 – 1.3 | 1.0 – 1.2 | 1.15 |
| Viscosity @ 25°C (mPa·s) | 200,000 – 700,000 | 20,000 – 70,000 | – |
| Working Life (minutes) | – | – | 3 |
| Tack-Free Time (minutes) | – | – | 3.5 |
| Gel Time (25°C, minutes) | – | – | 2 – 6 |
| Property | Value |
| Glass Transition Temperature (Tg) | 20°C |
| Shore Hardness (Durometer D) | 80 |
| Elongation (%) | 15 |
| Tensile Strength | 10 N/mm² (1,500 psi) |
| Dielectric Breakdown Strength | 16 kV/mm |
| Substrate | Strength (N/mm²) | Strength (psi) |
| Steel (grit blasted) | 11 | 1,600 |
| Aluminum (acid etched & abraded) | 17 | 2,500 |
| Aluminum (anodized) | 8 | 1,200 |
| Stainless Steel | 4.3 | 620 |
| Polycarbonate | 3.2 | 460 |
| Nylon | 1.0 | 150 |
| Wood (Fir) | 10 | 1,400 |
| PVC (Block Shear Strength) | 13 | 1,900 |
| ABS | 3.2 | 460 |
| Epoxy | 9 | 1,300 |
| Acrylic | 1.7 | 250 |
| Glass | 27 | 3,900 |
LOCTITE ECCOBOND UF 9000AG-061 is specifically formulated for FCBGA and Cu pillar flip chip packaging, ensuring robust solder joint encapsulation under extreme electrothermal cycling from -65 °C to 150 °C. Its superior capillary flow also optimizes throughput in automated assembly lines for high-density ICs.
BERGQUIST microTIM mTIM 1028 is purpose built for riding cage assemblies in servers, switches, and routers, interfacing with electroless nickel plated copper or aluminum heat sinks. It ensures stable operation in high power transceiver modules while also extending applicability to liquid cooling components, heat pipes, and fin based dissipative structures.
LOCTITE® ABLESTIK NCA 3218 is specifically formulated for ADAS optical modules, ensuring secure bonding in lens barrel to housing and lens housing to circuit board interfaces where dimensional accuracy and dielectric integrity are non negotiable.
Loctite® 3296, a dual cure (UV & thermal) adhesive, is engineered for active alignment assembly of ADAS cameras and LiDAR modules. Its optimized bonding to aluminum and FR4 substrates ensures secure fixation of optical components while enabling nanometer level alignment critical for high resolution imaging.
