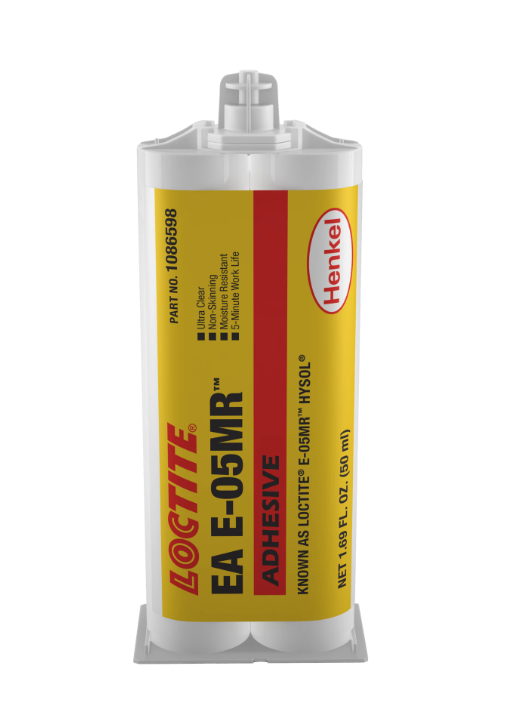

• Item Name: LOCTITE® EA E-05MR™
• Manufacturer: Henkel
• Technologies: Epoxy
• Color: Resin – Ultra clear, Hardener – Ultra clear, Mixture – Water white clear liquid
• Cure Type: Room temperature cure
• Package Size: Contact to Techniq VN for details.
• Shelf Life: Contact to Techniq VN for details.
LOCTITE® EA E-05MR™ is a two-component epoxy adhesive that cures at room temperature, forming an ultra-clear bondline with excellent impact resistance. It is designed for general-purpose bonding and offers gap-filling properties, making it suitable for bonding metal, ceramics, rigid plastics, and wood.
| Property | Resin | Hardener | Mixture |
|---|---|---|---|
| Appearance | Ultra clear | Ultra clear | Water white clear liquid |
| Specific Gravity @ 25°C | 1.17 | 1.16 | 1.16 |
| Viscosity (mPa·s) @ 100 s⁻¹ | 18,000 – 25,000 | 18,000 – 25,000 | – |
| Mix Ratio (by volume) | 1:1 | ||
| Gel Time @ 22°C | 7 – 12 min |
| Property | Value |
|---|---|
| Glass Transition Temperature (Tg) | 39°C |
| Shore Hardness (D) | 78 |
| Coefficient of Thermal Expansion (Pre Tg) | 49 × 10⁻⁶ K⁻¹ |
| Dielectric Breakdown Strength | 34 kV/mm |
| Elongation at Break | 4.5% |
| Tensile Strength | 50 N/mm² (7,240 psi) |
| Tensile Modulus | 1,500 N/mm² (217,440 psi) |
| Substrate | Strength (N/mm²) | Strength (psi) |
|---|---|---|
| Steel (grit blasted) | 23 | 3,380 |
| Aluminum (abraded) | 7 | 1,010 |
| Aluminum (anodized) | 14 | 2,080 |
| Stainless Steel | 5 | 770 |
| Polycarbonate | 3 | 380 |
| Nylon to Steel | 2 | 320 |
| Wood (Pine) to Steel | 7 | 1,020 |
| Material | Strength (N/mm²) | Strength (psi) |
|---|---|---|
| PVC | 1 | 160 |
| ABS | 5.7 | 820 |
| Epoxy | 11 | 1,570 |
| Acrylic | 1.5 | 220 |
| Glass | 6.6 | 950 |
| Substrate | Impact Strength (J) |
|---|---|
| Steel (grit blasted) | 5 |
| Aluminum (etched) | 6 |
LOCTITE ECCOBOND UF 9000AG-061 is specifically formulated for FCBGA and Cu pillar flip chip packaging, ensuring robust solder joint encapsulation under extreme electrothermal cycling from -65 °C to 150 °C. Its superior capillary flow also optimizes throughput in automated assembly lines for high-density ICs.
BERGQUIST microTIM mTIM 1028 is purpose built for riding cage assemblies in servers, switches, and routers, interfacing with electroless nickel plated copper or aluminum heat sinks. It ensures stable operation in high power transceiver modules while also extending applicability to liquid cooling components, heat pipes, and fin based dissipative structures.
LOCTITE® ABLESTIK NCA 3218 is specifically formulated for ADAS optical modules, ensuring secure bonding in lens barrel to housing and lens housing to circuit board interfaces where dimensional accuracy and dielectric integrity are non negotiable.
Loctite® 3296, a dual cure (UV & thermal) adhesive, is engineered for active alignment assembly of ADAS cameras and LiDAR modules. Its optimized bonding to aluminum and FR4 substrates ensures secure fixation of optical components while enabling nanometer level alignment critical for high resolution imaging.
