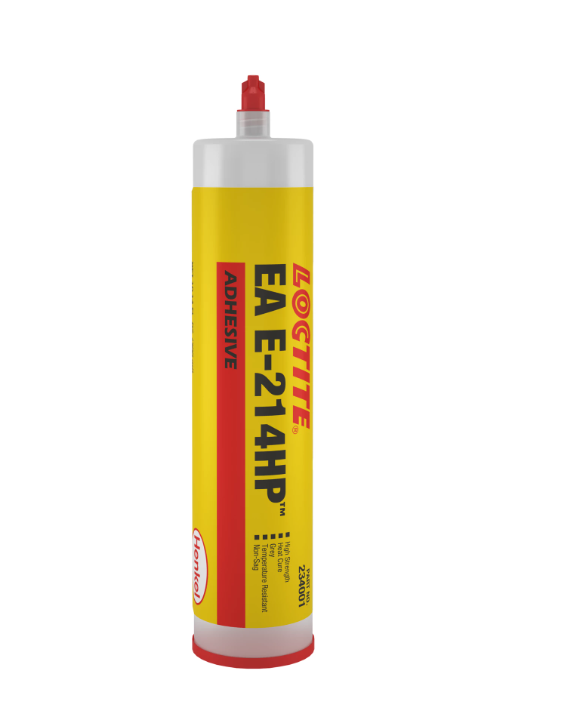

LOCTITE® EA E-214HP™ is a one-component, industrial-grade epoxy adhesive that requires heat curing. It develops tough, strong structural bonds with excellent peel resistance and impact strength. The cured adhesive provides superior thermal shock resistance, mechanical strength, and electrical properties, while also withstanding exposure to various solvents and chemicals. It bonds well to metals, glass, ceramics, and plastics.
| Property | Value |
|---|---|
| Appearance | Light grey paste |
| Specific Gravity @ 25°C | 1.11 |
| Viscosity (mPa·s) @ 25°C | 2,000,000 – 3,000,000 (Spindle 7, 1 rpm) 800,000 – 1,500,000 (Spindle 7, 2.5 rpm) |
| Cure Type | Heat cure |
| Property | Value |
|---|---|
| Glass Transition Temperature (°C) | 120 |
| Shore Hardness (D) | 85 |
| Elongation at Break (%) | 7 |
| Tensile Strength (N/mm² / psi) | 31 / 4,460 |
| Dielectric Breakdown Strength (kV/mm) | 22 |
| Substrate | Strength (N/mm²) | Strength (psi) |
|---|---|---|
| Grit-blasted steel | 33 | 4,820 |
| Acid-etched aluminum | ≥13.8 | ≥2,000 |
| Anodized aluminum | 8.4 | 1,220 |
| Stainless steel | 37 | 5,340 |
| Polycarbonate | 10 | 1,430 |
| Nylon | 1.2 | 180 |
| Wood (Fir) | 5 | 720 |
| Environment (°C) | 500 h | 1000 h |
|---|---|---|
| Air (87°C) | 90 | 80 |
| Motor oil (87°C) | 95 | 95 |
| Gasoline (87°C) | 110 | 115 |
| Water/Glycol (87°C) | 85 | 80 |
| Water (22°C) | 70 | 70 |
| Acetone (22°C) | 110 | 100 |
| Isopropanol (22°C) | 120 | 115 |
| Salt fog (22°C) | 45 | 60 |
| Condensing Humidity (49°C) | 60 | 50 |
