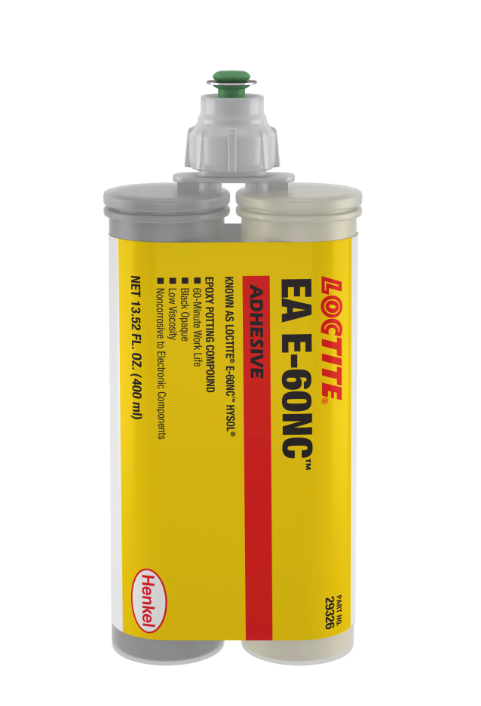

LOCTITE® EA E-60NC is a low-viscosity, two-component epoxy potting compound with an extended work life. It cures at room temperature to form a rigid, black encapsulant that is non-corrosive to metallic components. The fully cured epoxy provides excellent environmental and chemical resistance and acts as an electrical insulator.
Key Features:
| Property | Resin | Hardener | Mixed |
|---|---|---|---|
| Appearance | Black liquid | Pale yellow liquid | Black |
| Specific Gravity @ 23°C | 1.1 | 0.95 | 1.0 |
| Viscosity (cP) @ 25°C | 6,000 | 13,000 | – |
| Mix Ratio (by volume) | 1:1 | – | – |
| Mix Ratio (by weight) | 100:86 | – | – |
| Property | Value |
|---|---|
| Glass Transition Temperature (Tg) | 70°C |
| Shore Hardness (D) | 80 |
| Elongation (%) | 9 |
| Tensile Strength (MPa / psi) | 35 MPa (5,100 psi) |
| Dielectric Breakdown Strength (kV/mm) | 20 |
| Substrate | Strength (MPa) | Strength (psi) |
|---|---|---|
| Aluminum (acid etched) | 30 | 4,400 |
| Steel (grit blasted) | 30 | 4,400 |
| Stainless Steel | 27 | 3,900 |
| Anodized Aluminum | 18 | 2,600 |
| Polycarbonate | 13 | 1,900 |
| Nylon | 1.9 | 280 |
| Wood (Fir) | 11.3 | 1,600 |
| Substrate | Strength (MPa) | Strength (psi) |
|---|---|---|
| PVC | 12 | 1,700 |
| ABS | 13 | 1,900 |
| Epoxy | 29 | 4,200 |
| Acrylic | 1 | 150 |
| Glass | 32 | 4,600 |
| Environment | 500h (%) | 1000h (%) |
|---|---|---|
| Motor Oil (10W30) | 140 | 145 |
| Unleaded Gasoline | 100 | 125 |
| Water/Glycol 50/50 | 100 | 110 |
| Salt Fog | – | 80 |
| 95% RH | – | 115 |
| Water | – | 95 |
| Acetone | 75 | 95 |
| Isopropanol | 90 | 105 |
