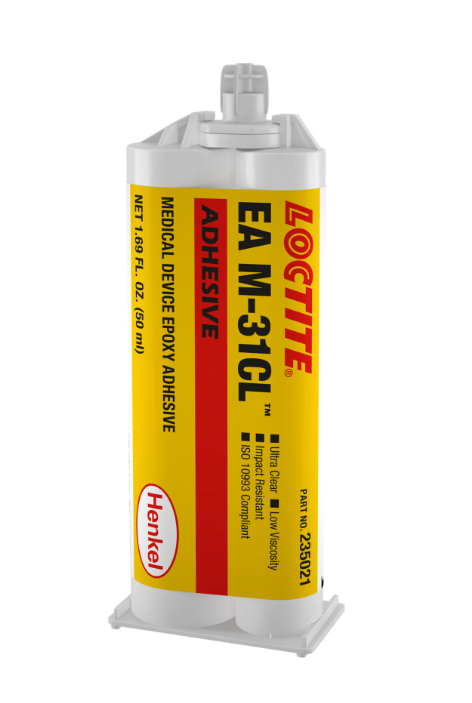

Item Name: LOCTITE® EA M-31CL™
Manufacturer: Henkel
Technologies: Epoxy, Two-component (Resin & Hardener)
Color: Ultra clear (mixed), resin and hardener clear to slightly yellow
Cure Type: Room temperature cure after mixing
Package Size: Contact to Techniq VN for details.
Shelf Life: Contact to Techniq VN for details.
LOCTITE® EA M-31CL™ is a two-part, medical-grade epoxy adhesive that cures at room temperature to form an ultra-clear, high-strength bondline with minimal shrinkage. It combines excellent impact resistance, dimensional stability, and resistance to chemicals and solvents, while maintaining optical clarity. Tested to ISO-10993 protocols, it is suitable for medical device assembly. The cured epoxy demonstrates outstanding structural, mechanical, and electrical insulating properties, with reliability across a wide temperature range.
Bonding of glass, ceramics, metals, optical fibers, and rigid plastics
Potting, staking, and laminating applications requiring optical clarity
Assembly of disposable medical devices
Structural bonding where high transparency and resistance to chemicals are essential
| Property | Still Not Mixed (Resin / Hardener) | After Mixed / Cured |
|---|---|---|
| Appearance | Resin: Clear to slightly yellow liquid Hardener: Clear to slightly yellow liquid |
Ultra-clear adhesive |
| Mix Ratio (by weight / by volume) | 100:46 (weight), 2:1 (volume) | — |
| Specific Gravity @ 25 °C | Resin: 1.1 Hardener: 1.0 |
Mixed: 1.07 |
| Viscosity @ 25 °C | Resin: 9,000–12,000 mPa·s Hardener: 1,500–9,000 mPa·s |
— |
| Working Life | — | 30 min @ 25 °C |
| Tack-Free Time | — | 160 min (low humidity) |
| Gel Time @ 100 °C | — | 90–150 s |
| Cure Method | — | Room temp cure (24 h) or accelerated cure (2 h @ 65 °C / heat to 93 °C to speed up) |
| Tensile Strength | — | 55.2 N/mm² (8,000 psi) |
| Elongation at Break | — | 8% |
| Glass Transition Temperature | — | 70 °C |
| Shore Hardness | — | D 80–90 (after 16–18 h @ 22 °C + 2 h @ 65 °C) |
BERGQUIST® GAP FILLER TGF 2900LVO, a silicone-based 2-component system, delivers optimized heat transfer across ultra-thin bondline interfaces. It is engineered for automotive control modules, high-throughput manufacturing lines, and electronics sensitive to siloxane outgassing, ensuring stable operation in environments spanning -40 °C to +150 °C.
BERGQUIST® LIQUI FORM TLF 10000 addresses critical hotspots in RRU/AAU/BBU units, EV battery packs, 5G antenna modules, industrial controllers, and compact PCBs while stabilizing vertical gaps ≤2.5 mm and preserving electrostatic reliability.
TECHNOMELT® Low Pressure Molding polyamides deliver precision encapsulation of PCBs, PCBAs, connectors, sensors, power modules, LEDs, HVAC controllers, and wearable medical devices, while also enabling leakproof integration in liquid-delivery systems.
Huntsman ARALDITE® systems are designed for • Rotor potting to replace permanent magnets in magnetless motor concepts • Stator encapsulation for enhanced coil protection • High voltage impregnation processes ensuring worker safety and long term adhesion.
