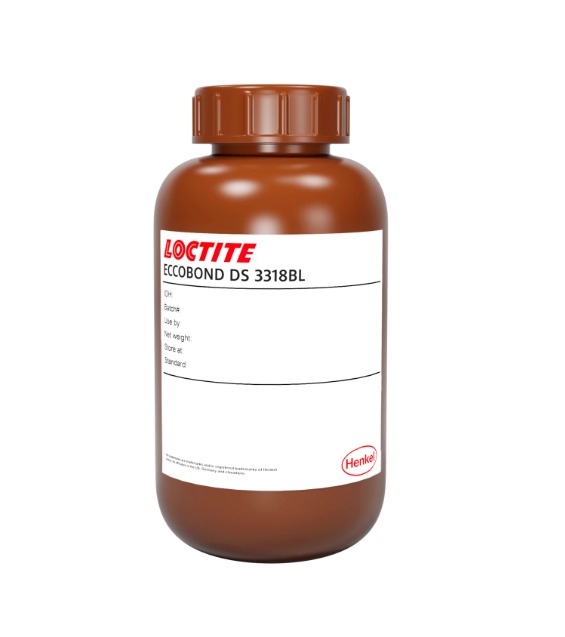

LOCTITE ECCOBOND DS 3318BL is a fast-curing, UV-curable acrylic adhesive designed for encapsulation and glob top applications. It features low-energy cure, excellent moisture resistance, and a 100% solids content formulation. The material is optimized for protecting Chip-on-Film (COF) in LCD module assemblies, providing reliable adhesion and durability.
| Property | Value |
|---|---|
| Technology | Acrylic |
| Appearance | Blue liquid |
| Solids Content (%) | 100 |
| Viscosity @ 25°C (15 s⁻¹) | 2,600 mPa·s (cP) |
| Cure Type | UV LED |
| Shelf Life @ 25°C | 180 days (6 months) |
| Parameter | Value |
|---|---|
| UV Wavelength | 365 nm |
| Light Intensity | ≥500 mW/cm² |
| UV Dosage | ≥500 mJ/cm² |
| Depth of Cure | 2.3 mm |
| Property | Value |
|---|---|
| Glass Transition Temperature (Tg) | 58.07°C |
| Water Permeability (24 hrs @ 19.5°C, 100% RH) | 19.5 g.mil/100 in².day |
| Extractable Ionic Content @ 100°C, 24 hrs | Cl⁻: 3 ppm, Na⁺: 1 ppm |
| Modulus @ 25°C | 195.8 N/mm² (28,400 psi) |
LOCTITE ECCOBOND UF 9000AG-061 is specifically formulated for FCBGA and Cu pillar flip chip packaging, ensuring robust solder joint encapsulation under extreme electrothermal cycling from -65 °C to 150 °C. Its superior capillary flow also optimizes throughput in automated assembly lines for high-density ICs.
BERGQUIST microTIM mTIM 1028 is purpose built for riding cage assemblies in servers, switches, and routers, interfacing with electroless nickel plated copper or aluminum heat sinks. It ensures stable operation in high power transceiver modules while also extending applicability to liquid cooling components, heat pipes, and fin based dissipative structures.
LOCTITE® ABLESTIK NCA 3218 is specifically formulated for ADAS optical modules, ensuring secure bonding in lens barrel to housing and lens housing to circuit board interfaces where dimensional accuracy and dielectric integrity are non negotiable.
Loctite® 3296, a dual cure (UV & thermal) adhesive, is engineered for active alignment assembly of ADAS cameras and LiDAR modules. Its optimized bonding to aluminum and FR4 substrates ensures secure fixation of optical components while enabling nanometer level alignment critical for high resolution imaging.
