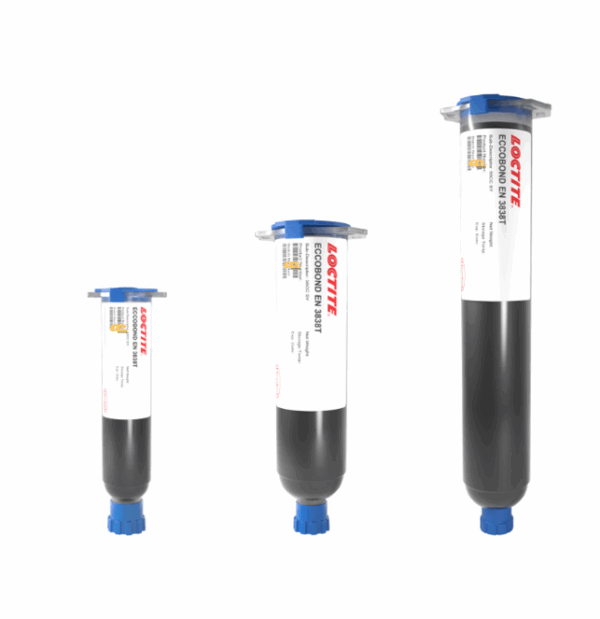

• Item Name: LOCTITE® ECCOBOND EN 3838T
• Manufacturer: Henkel
• Technologies: Epoxy
• Color: Black liquid
• Cure Type: Heat cure
• Package Size: Contact to Techniq VN for details.
• Shelf Life: 12 months
LOCTITE ECCOBOND EN 3838T is a one-component, black epoxy encapsulant. It is thixotropic, reworkable, and designed for Pb-free applications. The material cures rapidly at moderate heat, forming a low glass transition temperature (Tg), low-modulus structure that provides mechanical protection and stable electronic performance under temperature, humidity, and bias stress conditions.
Encapsulant for protecting PCB components
Optimized for CSP and BGA packages
Suitable where flexibility, reworkability, and low-modulus protection are required
| Property | Still Not Mixed (Uncured) | After Mixed / Cured |
|---|---|---|
| Appearance | Black liquid | Solid encapsulant |
| Viscosity (mPa·s, 25°C, 20 rpm) | 6,700 | — |
| Thixotropic Index (2/20 rpm) | 5.8 | — |
| Specific Gravity | 1.2 | — |
| Pot Life @ 25°C | 3 days | — |
| Shelf Life @ -20°C | 365 days | — |
| Cure Method | Heat cure | — |
| Recommended Cure | 8 min @ 130°C | — |
| Hardness | — | Shore D 27 |
| Glass Transition Temp (°C) | — | 2 |
| CTE (ppm/°C, below Tg) | — | 57 |
| CTE (ppm/°C, above Tg) | — | 217 |
| Storage Modulus @ 25°C | — | 466 N/mm² (67,590 psi) |
| Thermal Conductivity | — | 0.22 W/m·K |
LOCTITE ECCOBOND UF 9000AG-061 is specifically formulated for FCBGA and Cu pillar flip chip packaging, ensuring robust solder joint encapsulation under extreme electrothermal cycling from -65 °C to 150 °C. Its superior capillary flow also optimizes throughput in automated assembly lines for high-density ICs.
BERGQUIST microTIM mTIM 1028 is purpose built for riding cage assemblies in servers, switches, and routers, interfacing with electroless nickel plated copper or aluminum heat sinks. It ensures stable operation in high power transceiver modules while also extending applicability to liquid cooling components, heat pipes, and fin based dissipative structures.
LOCTITE® ABLESTIK NCA 3218 is specifically formulated for ADAS optical modules, ensuring secure bonding in lens barrel to housing and lens housing to circuit board interfaces where dimensional accuracy and dielectric integrity are non negotiable.
Loctite® 3296, a dual cure (UV & thermal) adhesive, is engineered for active alignment assembly of ADAS cameras and LiDAR modules. Its optimized bonding to aluminum and FR4 substrates ensures secure fixation of optical components while enabling nanometer level alignment critical for high resolution imaging.
