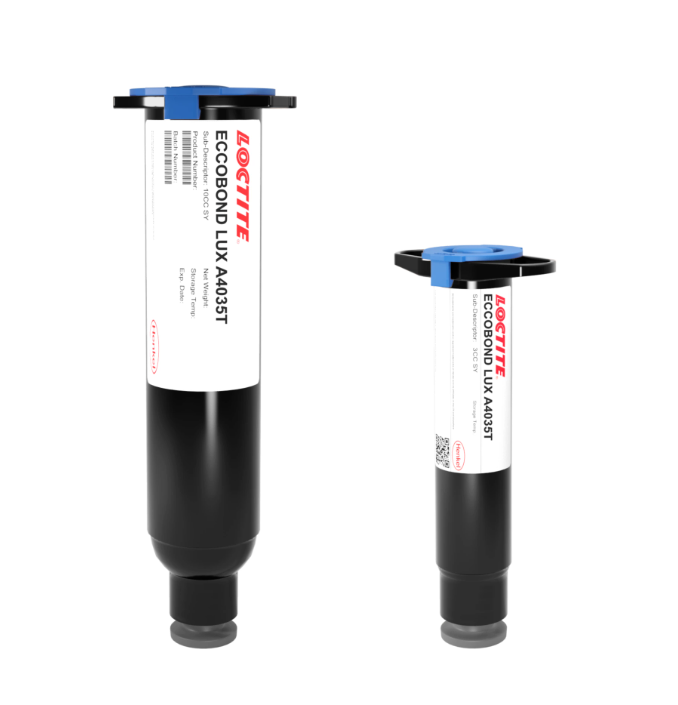

• Item Name: LOCTITE ECCOBOND LUX A4035T
• Manufacturer: Henkel
• Technologies: Acrylate
• Color: Pale yellow
• Cure Type: UV light, Visible light, and Heat cure
• Package Size: Contact to Techniq VN for details.
• Shelf Life: 3 to 6 months
LOCTITE ECCOBOND LUX A4035T is a single-pack, photocurable adhesive designed for optical, fiber optic, and optoelectronic device assembly. It cures using ultraviolet (UV) light, visible light, and heat. The adhesive is optical grade and provides enhanced productivity, with a secondary thermal cure initiator for shadowed areas.
| Property | Value |
|---|---|
| Technology | Acrylate |
| Color | Pale yellow |
| Viscosity (Brookfield SP #27, 25°C) | 500 mPa·s (cP) |
| Shelf Life @ 25°C | 91 days |
| Shelf Life @ 0 to 5°C | 183 days |
| Cure Type | Conditions |
|---|---|
| UV Light Cure | UV Wavelength: 365 nm Light Intensity: 50 mW/cm² |
| Visible Light Cure | Wavelength: 470 nm Light Intensity: 100 mW/cm² |
| Thermal Cure | 1 hour @ 100°C 2 hours @ 80°C |
| Property | Value |
|---|---|
| Glass Transition Temperature (Tg) | 145°C |
| Linear Shrinkage on Cure | 2.4% |
| Hardness | Shore D 82 |
| Coefficient of Thermal Expansion (Below Tg) | 110 ppm/°C |
| Refractive Index @ 589 nm | 1.572 |
| Refractive Index @ 1,550 nm | 1.553 |
LOCTITE ECCOBOND UF 9000AG-061 is specifically formulated for FCBGA and Cu pillar flip chip packaging, ensuring robust solder joint encapsulation under extreme electrothermal cycling from -65 °C to 150 °C. Its superior capillary flow also optimizes throughput in automated assembly lines for high-density ICs.
BERGQUIST microTIM mTIM 1028 is purpose built for riding cage assemblies in servers, switches, and routers, interfacing with electroless nickel plated copper or aluminum heat sinks. It ensures stable operation in high power transceiver modules while also extending applicability to liquid cooling components, heat pipes, and fin based dissipative structures.
LOCTITE® ABLESTIK NCA 3218 is specifically formulated for ADAS optical modules, ensuring secure bonding in lens barrel to housing and lens housing to circuit board interfaces where dimensional accuracy and dielectric integrity are non negotiable.
Loctite® 3296, a dual cure (UV & thermal) adhesive, is engineered for active alignment assembly of ADAS cameras and LiDAR modules. Its optimized bonding to aluminum and FR4 substrates ensures secure fixation of optical components while enabling nanometer level alignment critical for high resolution imaging.
