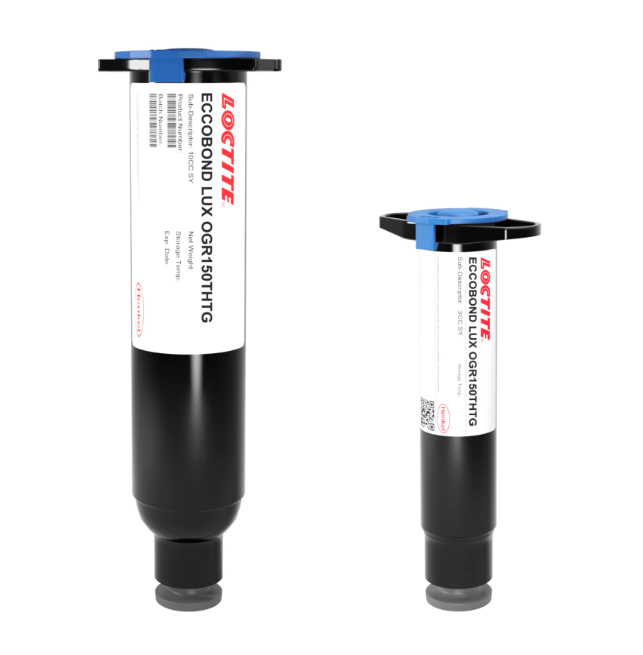

LOCTITE ECCOBOND LUX OGR150THTG is a single-component, UV and thermal-curable acrylate adhesive designed for high-throughput optoelectronic assembly. Key benefits include:
Ideal for: Optoelectronic assembly where rapid curing and high-temperature resistance are required.
| Property | Value |
|---|---|
| Technology | Acrylate |
| Color | Colorless |
| Viscosity @ 25°C (Brookfield, 10 rpm) | 1,000 mPa·s (cP) |
| Work Life @ 25°C | 91 days |
| Shelf Life (-5°C to +5°C) | 183 days |
| Cure Method | Conditions |
|---|---|
| UV Cure | 365 nm, 110 mW/cm² at bondline |
| Thermal Cure (Secondary Cure for Shadowed Areas) | 1 hour @ 100°C or 2 hours @ 85°C |
| Property | Value |
|---|---|
| Hardness (Shore D) | 76 |
| Glass Transition Temperature (Tg) | 145°C |
| Refractive Index (589 nm) | 1.5202 |
| Coefficient of Thermal Expansion (Below Tg) | 61 ppm/°C |
| Coefficient of Thermal Expansion (Above Tg) | 157 ppm/°C |
| Moisture Absorption @ 85°C/85% RH | 1.62% |
| Temperature | N/mm² | psi |
|---|---|---|
| -65°C | 2,200 | 320,000 |
| 25°C | 1,300 | 190,000 |
| 100°C | 380 | 54,000 |
| 150°C | 75 | 11,000 |
| Condition | Strength (kg-f/die) |
|---|---|
| Post Cure @ 25°C | 3.8 |
| Post Cure @ 25°C with Silane | 19 |
LOCTITE ECCOBOND UF 9000AG-061 is specifically formulated for FCBGA and Cu pillar flip chip packaging, ensuring robust solder joint encapsulation under extreme electrothermal cycling from -65 °C to 150 °C. Its superior capillary flow also optimizes throughput in automated assembly lines for high-density ICs.
BERGQUIST microTIM mTIM 1028 is purpose built for riding cage assemblies in servers, switches, and routers, interfacing with electroless nickel plated copper or aluminum heat sinks. It ensures stable operation in high power transceiver modules while also extending applicability to liquid cooling components, heat pipes, and fin based dissipative structures.
LOCTITE® ABLESTIK NCA 3218 is specifically formulated for ADAS optical modules, ensuring secure bonding in lens barrel to housing and lens housing to circuit board interfaces where dimensional accuracy and dielectric integrity are non negotiable.
Loctite® 3296, a dual cure (UV & thermal) adhesive, is engineered for active alignment assembly of ADAS cameras and LiDAR modules. Its optimized bonding to aluminum and FR4 substrates ensures secure fixation of optical components while enabling nanometer level alignment critical for high resolution imaging.
