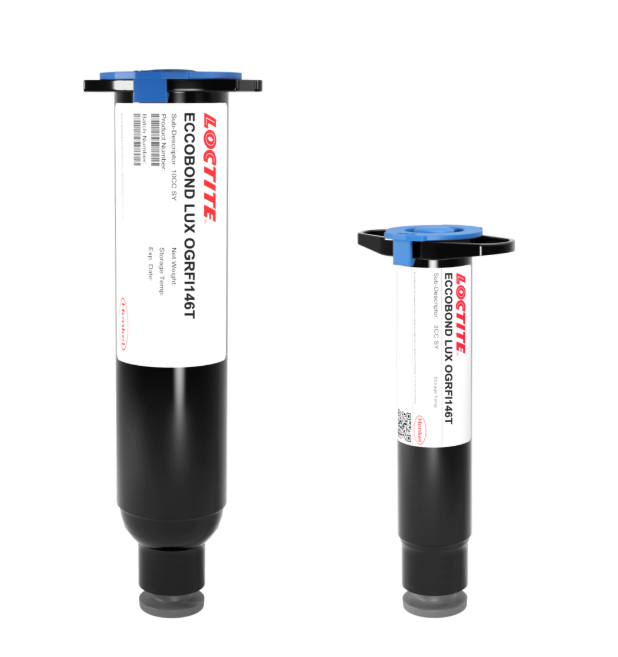

LOCTITE ECCOBOND LUX OGRFI146T is a single-component, photocurable adhesive specifically designed for optical, fiber optic, and optoelectronic device assembly. This acrylate-based adhesive offers a low refractive index, making it ideal for high-precision optical applications. It cures rapidly under UV or visible light and also features a secondary thermal cure mechanism for shadowed areas where light cannot penetrate. The product is designed for bonding silicon and ceramics and ensures high productivity in assembly processes.
| Property | Value |
|---|---|
| Technology | Acrylate |
| Color | Clear |
| Viscosity (Brookfield, 25°C) | 1,250 mPa·s (Spindle 27, 10 rpm) |
| Work Life (25°C) | 91 days |
| Shelf Life (0 to 5°C) | 183 days |
| Shelf Life (25°C) | 91 days |
| Cure Type | Condition |
|---|---|
| UV Cure | 500 mW/cm² for 8 seconds (or 4,000 mJ/cm²) |
| Visible Light Cure | 600 mW/cm² for 30 seconds (or 18 J/cm²) |
| Thermal Cure | 1 hour at 100°C or 2 hours at 85°C |
| Property | Value |
|---|---|
| Hardness (Shore D) | 64 |
| Glass Transition Temperature (Tg) | 85°C (DMTA), 188°C (DSC) |
| Coefficient of Thermal Expansion | Below Tg: 71 ppm/°C, Above Tg: 214 ppm/°C |
| Water Absorption (85°C/85 RH) | 1.5% |
| Refractive Index | 1.463 (589 nm), 1.449 (1,550 nm) |
| Temperature | Value |
|---|---|
| -65°C | 1,600 N/mm² (240,000 psi) |
| 25°C | 650 N/mm² (94,000 psi) |
| 100°C | 7.2 N/mm² (1,100 psi) |
| 150°C | 3.4 N/mm² (500 psi) |
| 200°C | 4.4 N/mm² (640 psi) |
| Condition | Adhesion Strength |
|---|---|
| @ 25°C | 20.1 N/mm² (2,910 psi) |
| @ 25°C w/ Silane | 18.3 N/mm² (2,650 psi) |
| After 1,000 hrs @ 85°C/85% RH | 4.5 N/mm² (650 psi) |
| After 72 hrs PCT, 121°C @ 100% RH | 3.2 N/mm² (470 psi) |
