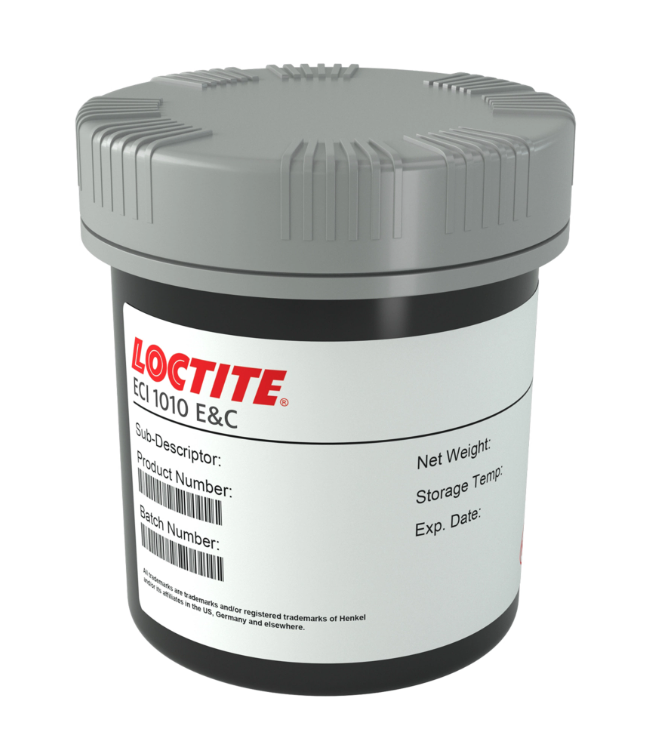

Item Name: LOCTITE® ECI 1010
Manufacturer: Henkel
Technologies: Thermoplastic, silver conductive ink
Color: Gray paste
Cure Type: Heat drying
Package Size: Contact to Techniq VN for details.
Shelf Life: 12 months
LOCTITE® ECI 1010 is a thermoplastic, silver-filled conductive ink optimized for flexible printed electronics. It combines high conductivity (~0.0057 Ω/sq/25 µm), good adhesion, and mechanical durability, with a balance between electrical and flexural performance. It is compatible with LOCTITE® EDAG 440A/440B carbon inks and LOCTITE® EDAG PF 455B dielectric ink, as well as certain LOCTITE® electrically conductive adhesives (ECAs) for component attach. Designed for screen printing, it is particularly suitable for applications requiring flexibility and reliability.
Flexible printed circuits (FPC)
RFID antennas and tags
General conductive traces on PET, PI, PEN, and paper
Hybrid printed electronics (combined with dielectric & carbon inks)
| Category | Property | Value |
|---|---|---|
| Undried | Technology | Thermoplastic |
| Appearance | Gray paste | |
| Filler Type | Silver | |
| Solid Content | 62 % | |
| Density | 2.1 g/mL | |
| Viscosity (25°C, shear rate 1.5 s⁻¹) | 6,400 mPa·s | |
| Thixotropic Index (15/1.5 s⁻¹) | 1.6 | |
| Theoretical Coverage (10 µm film) | 10.6 m²/kg | |
| Shelf Life | 365 days (2–8 °C) | |
| Operating Temperature (max) | 100 °C | |
| Drying Cycle | 15 min @ 120 °C | |
| Dried | Sheet Resistance (25 µm film, 15 min @ 120 °C) | 0.0057 Ω/sq |
| Resistance Increase (double crease test) | +14 % | |
| Adhesion | Good (cross-hatch 5B typical, not explicitly listed) |

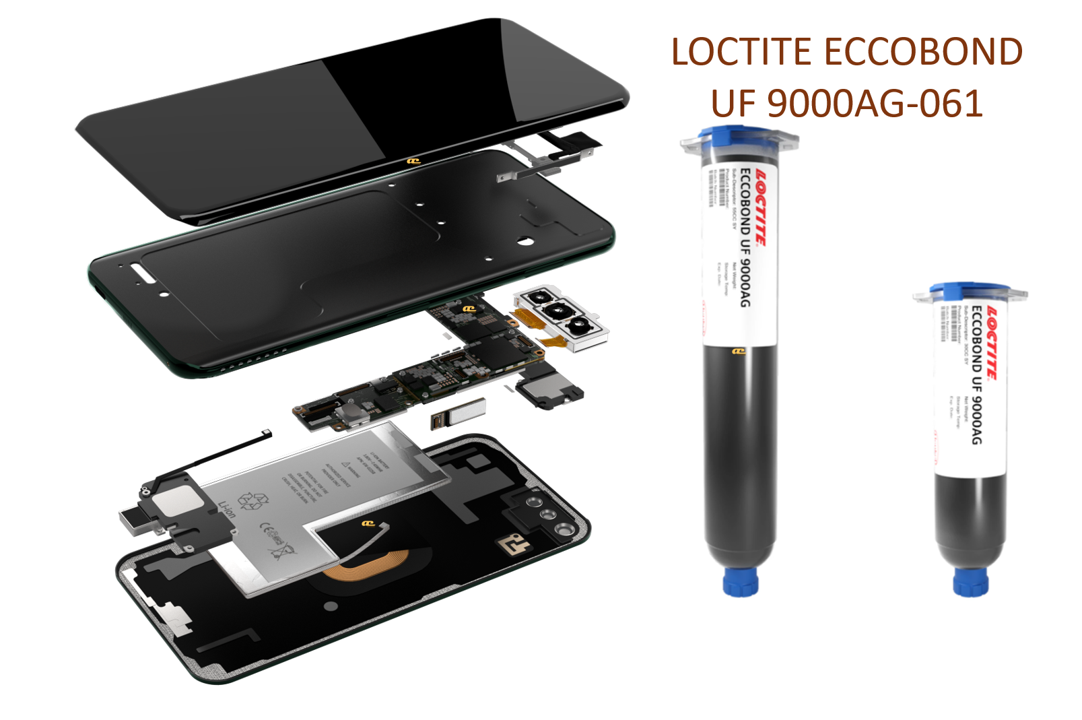

LOCTITE ECCOBOND UF 9000AG-061 is specifically formulated for FCBGA and Cu pillar flip chip packaging, ensuring robust solder joint encapsulation under extreme electrothermal cycling from -65 °C to 150 °C. Its superior capillary flow also optimizes throughput in automated assembly lines for high-density ICs.
