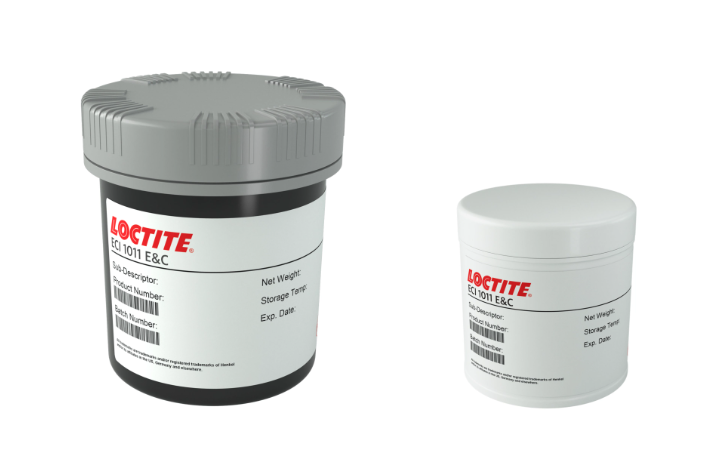

Item Name: LOCTITE® ECI 1011
Manufacturer: Henkel
Technologies: Thermoplastic, silver conductive ink
Color: Gray paste
Cure Type: Heat drying and heat sintering
Package Size: Contact to Techniq VN for details.
Shelf Life: 12 months
LOCTITE® ECI 1011 is a thermoplastic, silver-filled conductive ink that offers exceptionally high conductivity, smooth appearance, and strong adhesion to PET, PI, PEN, and paper substrates. With a particle size below 2 µm, the ink partially sinters during drying, resulting in a shiny coating and ultra-low resistance (~0.0029 Ω/sq/25 µm). It is suitable for multiple printing techniques including screen, flexographic, and rotogravure. Designed for maximum performance up to 105°C, it is Henkel’s most conductive silver ink, making it ideal for fine conductive circuits and antenna structures.
UHF and HF antenna assembly
Printed circuits for electronics and RFID tags
High-conductivity traces on PET, PEN, PI, and paper
Flexible electronic circuitry requiring ultra-low resistance
Conductive layers for hybrid printed electronics designs
| Category | Property | Value |
|---|---|---|
| Undried | Technology | Thermoplastic |
| Appearance | Gray paste | |
| Filler Type | Silver | |
| Particle Size | <2 µm | |
| Solid Content | 76 % | |
| Density | 3 g/ml | |
| Viscosity (25°C, shear rate 1.5 s⁻¹) | 7,500 mPa·s | |
| Thixotropic Index (15/1.5 s⁻¹) | 2.5 | |
| Theoretical Coverage (10 µm film) | 10 m²/kg | |
| Shelf Life (20°C) | 365 days | |
| Operating Temperature (max) | 105 °C | |
| Drying Cycle | 10 min @ 150°C | |
| Dried | Adhesion on PET | Grade 5B (ASTM 3359) |
| Sheet Resistance (25 µm film, 10 min @ 150°C) | 0.0029 Ω/sq |
