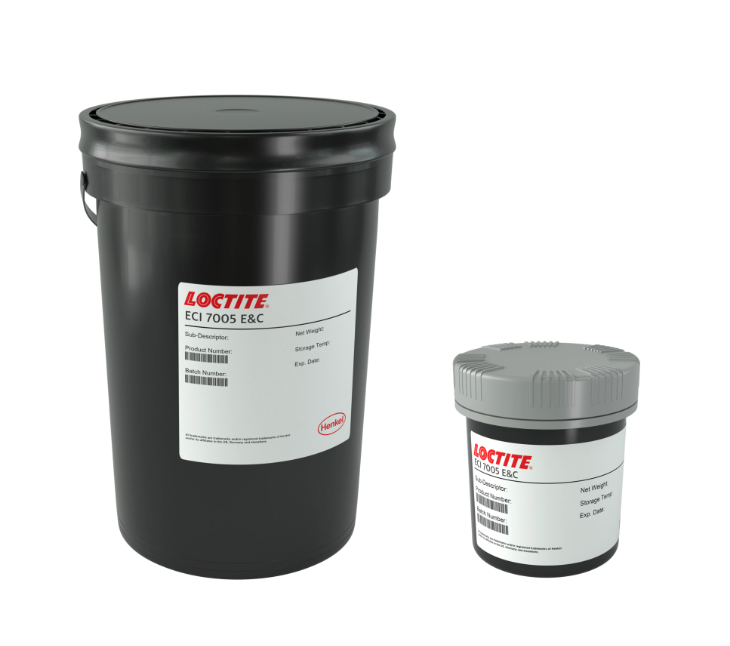

Item Name: LOCTITE ECI 7005 E&C
Manufacturer: Henkel
Technologies: Thermoplastic conductive carbon ink
Color: Black
Cure Type: Hot air drying
Package Size: Contact to Techniq VN for details.
Shelf Life: 12 months
LOCTITE ECI 7005 E&C is a black, thermoplastic, water-based conductive carbon ink designed for high-speed printing applications. It cures by hot air drying and demonstrates reliable conductivity with flexible substrates. The ink is optimized for flexographic and rotogravure techniques, offering ease of processing, stable viscosity, and compatibility with diverse substrate types. With a pH of 7–8 and carbon filler, it is tailored for electronic circuitry where efficient, consistent conductivity is required.
Printing conductive tracks on electronic circuitry
Suitable for PET, paper, and non-woven textiles
Enables high-speed, precision deposition via flexographic or rotogravure printing
Used in flexible electronics and smart packaging applications
| Property | Still Not Mixed (Uncured) | After Mixed / Cured |
|---|---|---|
| Appearance | Black | Black conductive coating |
| Technology | Thermoplastic, water-based carbon ink | Conductive ink (carbon-filled) |
| Viscosity (20 rpm, spindle 6) | ~10,000 mPa·s | — |
| Solids Content | 36.5% | — |
| Shelf Life (5–50°C) | 365 days | — |
| Flash Point | 78°C | — |
| Cure Method | Hot air drying | 2 min @ 120°C (higher temp improves) |
| Sheet Resistance (25 μm film on PET) | — | <40 Ω/sq after 2 min @ 120°C |
| Cleaning | Water | — |
| Storage | 5–50°C, dry, unopened container | — |
