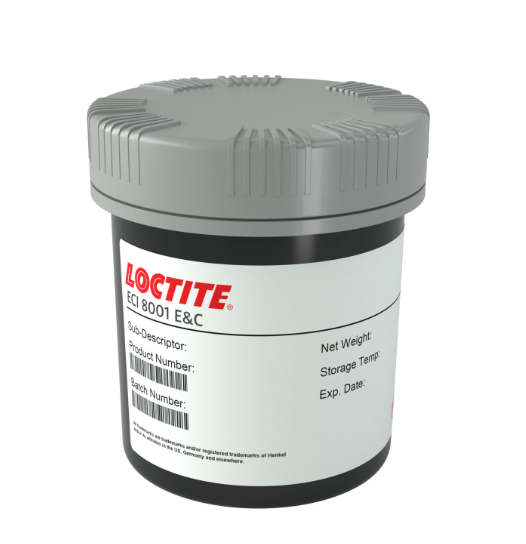

Item Name: LOCTITE® ECI 8001
Manufacturer: Henkel
Technologies: Thermoplastic, Positive Temperature Coefficient (PTC) carbon conductive ink
Color: Black paste
Cure Type: Hot air drying or infrared
Package Size: Contact to Techniq VN for details.
Shelf Life: 6 months
LOCTITE® ECI 8001 is a carbon-filled thermoplastic positive temperature coefficient (PTC) ink developed for low-voltage (<50 V) self-regulating heating elements. Delivered as a black paste, it is screen printable, flexible, and suitable for PET, PEN, and PI substrates. With a self-regulating temperature of about 60°C and a PTC ratio above 8, the ink enables rapid heating and precise cut-off without external control. It is compatible with silver ink LOCTITE® ECI 1010 and can be blended with LOCTITE® NCI 8002 to fine-tune resistance, making it versatile for controlled heating designs.
Self-regulating heating elements on polyester foils
Printed heaters for electronics requiring ~60°C cut-off
Low-voltage thermal management systems
Hybrid designs with silver busbars for efficient current distribution
Adjustable resistance heating circuits via blending with NCI 8002
| Category | Property | Value |
|---|---|---|
| Undried | Technology | Thermoplastic |
| Appearance | Black paste | |
| Filler Type | Carbon | |
| Solid Content | 49 % | |
| Density | 1.0 g/cm³ | |
| Viscosity (25°C, shear rate 1.5 s⁻¹) | 51,000 mPa·s | |
| Thixotropic Index (1.5/15 s⁻¹) | 7.0 | |
| Theoretical Coverage (10 µm film) | 48 m²/kg | |
| Shelf Life (8–28°C) | 180 days | |
| Operating Temperature (max) | 70 °C | |
| Drying Cycle | 10 min @ 120°C | |
| Dried | Adhesion on PET | Grade 5B (ASTM 3359) |
| Sheet Resistance (25 µm film, 10 min @ 120°C) | 1,700 Ω/sq | |
| PTC Ratio | 8.6 | |
| Self-Regulation Temperature | ~60 °C |
