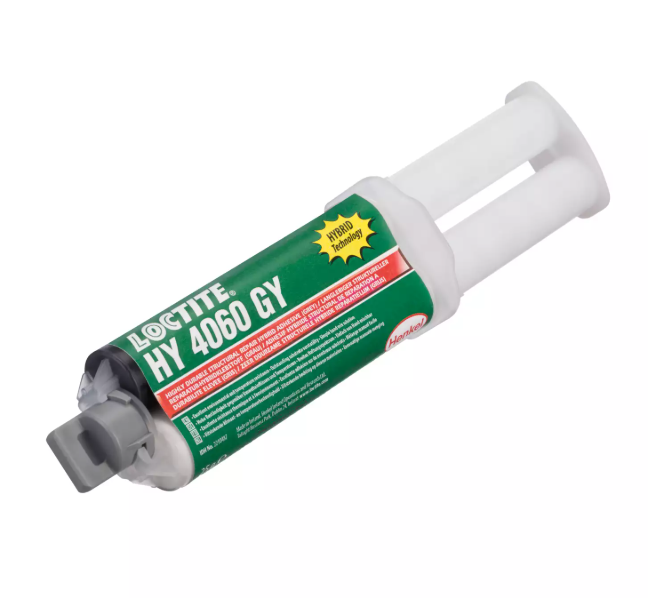

LOCTITE® HY 4060GY™ is a two-component hybrid adhesive combining cyanoacrylate and epoxy technology. It offers high strength and fast fixture at room temperature, with good resistance to temperature and moisture. It is designed for bonding metals, most plastics, and rubbers and can be dispensed directly from the pack without additional equipment.
3. Typical Properties – Before and After Mixing
| Property | Part A (Cyanoacrylate) | Part B (Epoxy) | Mixed |
|---|---|---|---|
| Appearance | Black liquid | White gel | Grey |
| Specific Gravity (g/cm³) | 1.01 | 1.06 | – |
| Viscosity (mPa·s) @ 25°C | 4,000 – 7,000 | 25,000 – 40,000 | High |
| Mix Ratio (by volume) | 1:1 | – | – |
| Property | Value |
|---|---|
| Fixture Time @ 25°C | <180 sec |
| Full Strength Development | Up to 168 hours |
| Glass Transition Temp. (°C) | 88 |
| Property | Value |
|---|---|
| Shore Hardness (D) | 65 – 69 |
| Tensile Strength (N/mm²) | 7.1 (1,025 psi) |
| Elongation at Break (%) | 3.6 |
| Lap Shear Strength (Steel) | 17 N/mm² (2,420 psi) |
| Lap Shear Strength (Aluminum) | 7.6 N/mm² (1,100 psi) |
| Lap Shear Strength (Polycarbonate) | 6.9 N/mm² (1,000 psi) |
| Condition | % Strength Retention (after 1000h) |
|---|---|
| Water @ 22°C | 70% |
| Water @ 60°C | 55% |
| Motor Oil @ 40°C | 130% |
| Gasoline @ 22°C | 105% |
| Ethanol @ 22°C | 90% |
| 95% RH @ 65°C | 65% |
