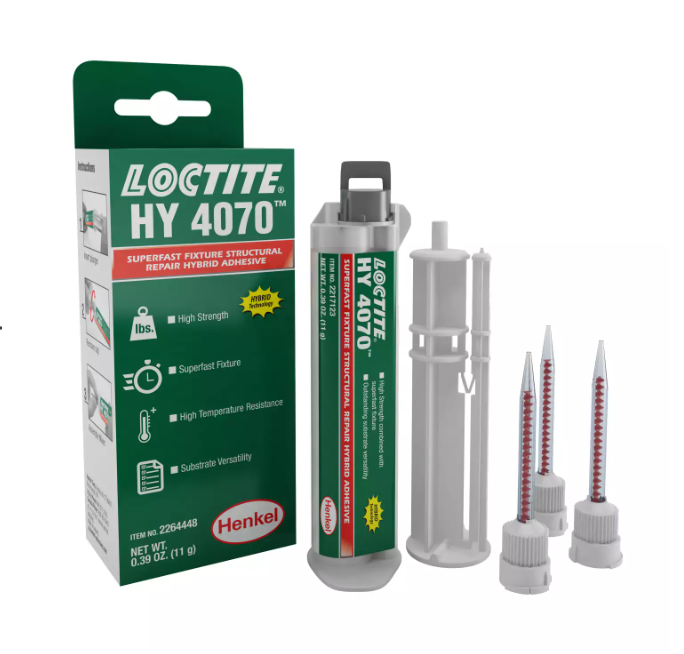

LOCTITE® HY 4070™ is a two-component hybrid adhesive combining cyanoacrylate and acrylic technologies. It offers fast fixture times at room temperature in bond gaps up to 5 mm, with excellent adhesion to various substrates such as plastics, rubbers, and metals. It is designed for applications requiring complete cure of excess adhesive, as well as resistance to temperature and moisture. Its gel consistency prevents flow, making it suitable for vertical applications.
| Property | Part A | Part B |
|---|---|---|
| Chemical Type | Cyanoacrylate | Methacrylate |
| Appearance | Transparent to pale yellow | Clear to slightly yellow |
| Specific Gravity @ 25°C | 1.05 – 1.1 | – |
| Viscosity (mPa·s) | 200 – 1,300 | 1 – 30 |
| Mix Ratio (by volume) | 10:1 |
| Property | Value |
|---|---|
| Gel Time in Nozzle | 4 – 5 minutes |
| Fixture Time on Aluminum | <60 sec (0.05 mm gap), 4 – 6 min (2 mm gap) |
| Glass Transition Temperature (°C) | 110 |
| Shore Hardness (D) | 65 |
| Tensile Strength (N/mm²) | 14.6 |
| Elongation at Break (%) | 4.9 |
| Lap Shear Strength on Mild Steel (N/mm²) | 25 |
| Lap Shear Strength on Aluminum (N/mm²) | 15 – 20 |
| Impact Strength (kJ/m²) | 4.2 |
LOCTITE ECCOBOND UF 9000AG-061 is specifically formulated for FCBGA and Cu pillar flip chip packaging, ensuring robust solder joint encapsulation under extreme electrothermal cycling from -65 °C to 150 °C. Its superior capillary flow also optimizes throughput in automated assembly lines for high-density ICs.
BERGQUIST microTIM mTIM 1028 is purpose built for riding cage assemblies in servers, switches, and routers, interfacing with electroless nickel plated copper or aluminum heat sinks. It ensures stable operation in high power transceiver modules while also extending applicability to liquid cooling components, heat pipes, and fin based dissipative structures.
LOCTITE® ABLESTIK NCA 3218 is specifically formulated for ADAS optical modules, ensuring secure bonding in lens barrel to housing and lens housing to circuit board interfaces where dimensional accuracy and dielectric integrity are non negotiable.
Loctite® 3296, a dual cure (UV & thermal) adhesive, is engineered for active alignment assembly of ADAS cameras and LiDAR modules. Its optimized bonding to aluminum and FR4 substrates ensures secure fixation of optical components while enabling nanometer level alignment critical for high resolution imaging.
