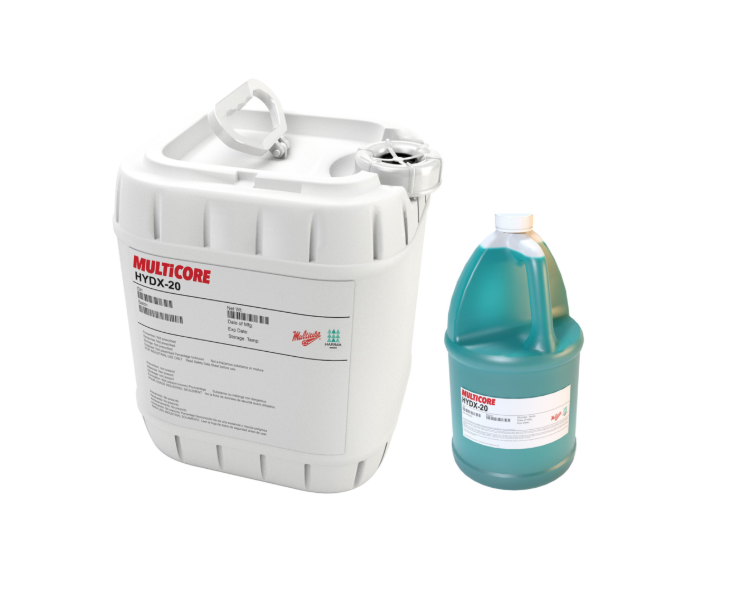

LOCTITE® HYDX-20 is a water-soluble liquid flux designed for wave soldering, especially for surfaces with poor solderability where water cleaning is acceptable. It offers readily water-cleanable residues, no white residue after cleaning, and a sustained activity to maximize process efficiency. It performs well on difficult-to-solder surfaces and is highly effective for high-speed soldering of both conventional leaded and SMD components. The product ensures good through-hole penetration without affecting properly cured solder resists.
LOCTITE® HYDX-20 is recommended for electronics applications where water cleaning is acceptable. It is suitable for applications requiring high performance and reliability. It can be applied using foam, wave, or spray fluxing.
| Property | Value |
|---|---|
| Solids Content | 20% |
| Halide Content | 0.98% Cl |
| Acid Value | 24 mgKOH/g |
| Specific Gravity (25°C) | 0.874 |
| Color | Green |
| Freeze-Thaw Stability (-20°C) | No separation |
| Recommended Thinner | PC70i |
| Property | Test Specification | Result |
|---|---|---|
| Surface Insulation Resistance (SIR) | J-STD-004 | Pass (after cleaning) |
| Flux Activity Classification | J-STD-004 | ORH1 |
| Flux Activity Classification | EN29454 | 2.1.2 |
LOCTITE ECCOBOND UF 9000AG-061 is specifically formulated for FCBGA and Cu pillar flip chip packaging, ensuring robust solder joint encapsulation under extreme electrothermal cycling from -65 °C to 150 °C. Its superior capillary flow also optimizes throughput in automated assembly lines for high-density ICs.
BERGQUIST microTIM mTIM 1028 is purpose built for riding cage assemblies in servers, switches, and routers, interfacing with electroless nickel plated copper or aluminum heat sinks. It ensures stable operation in high power transceiver modules while also extending applicability to liquid cooling components, heat pipes, and fin based dissipative structures.
LOCTITE® ABLESTIK NCA 3218 is specifically formulated for ADAS optical modules, ensuring secure bonding in lens barrel to housing and lens housing to circuit board interfaces where dimensional accuracy and dielectric integrity are non negotiable.
Loctite® 3296, a dual cure (UV & thermal) adhesive, is engineered for active alignment assembly of ADAS cameras and LiDAR modules. Its optimized bonding to aluminum and FR4 substrates ensures secure fixation of optical components while enabling nanometer level alignment critical for high resolution imaging.
