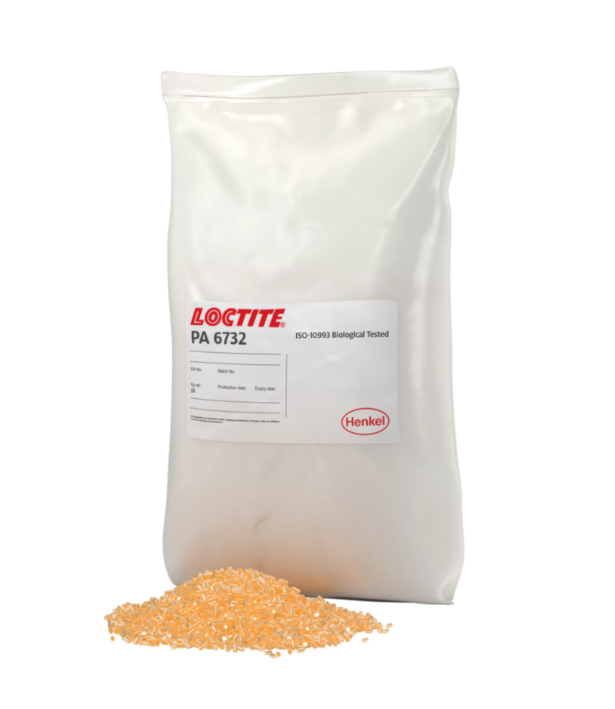

LOCTITE® PA 6732 is a high-performance thermoplastic polyamide hot melt adhesive designed for low-pressure molding applications. It is particularly suitable for medical devices, offering excellent adhesion, moisture resistance, and environmental durability. The product is formulated for easy moldability and gentle encapsulation of fragile components.
Key Benefits:
✔ Easy moldability
✔ Strong adhesion to various substrates
✔ Excellent moisture & environmental resistance
✔ Simplified manufacturing process
| Property | Test Method | Value |
|---|---|---|
| Specific Gravity @ 23ºC | ISO 1183 | 0.98 |
| Softening Point (°C) | ASTM E28 | 187 |
| Melting Viscosity (mPa·s) | ASTM D3236 | |
| @ 200°C | 5,500 | |
| @ 210°C | 3,200 | |
| @ 220°C | 2,500 |
| Property | Test Method | Value |
|---|---|---|
| Shore Hardness (A) | ISO 868 | 90 |
| Elongation (%) | ASTM D638 | 400 |
| Low Temperature Flexibility (°C) | ASTM D3111 | -40 |
| Temperature Creep Resistance (°C) | ELTM 1020 | 165 |
| Glass Transition Temp (Tg) (°C) | ASTM D3418 | -45 |
| Water Absorption (1 day, 23ºC, %) | ISO 62 | 1.0 |
| Tensile Strength at Break (N/mm²) | ASTM D638 | 6 (870 psi) |
| Yield Strength (N/mm²) | ASTM D638 | 5.5 (800 psi) |
| E-Modulus (N/mm²) | ASTM D638 | 70 (10,150 psi) |
| Property | Frequency (GHz) | Value |
|---|---|---|
| Dielectric Constant / Dissipation Factor | 5 GHz | 2.53 / 0.028 |
| 10 GHz | 2.64 / 0.023 | |
| 20 GHz | 2.6 / 0.018 | |
| 30 GHz | 2.59 / 0.016 | |
| 40 GHz | 2.59 / 0.015 | |
| 50 GHz | 2.57 / 0.014 |
