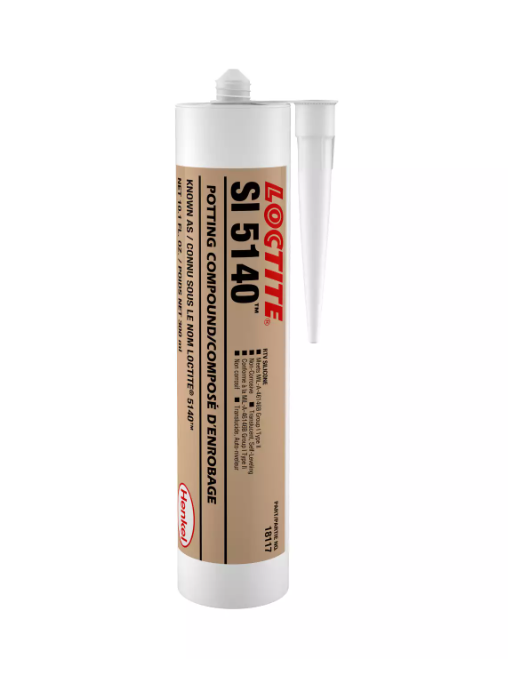

Item Name: LOCTITE® SI 5140™
Manufacturer: Henkel
Technologies: One-component alkoxy silicone (RTV)
Color: Translucent milky white
Cure Type: Room temperature vulcanizing (RTV)
Package Size: Contact to Techniq VN for details.
Shelf Life: Contact to Techniq VN for details.
LOCTITE® SI 5140™ is a one-component, non-corrosive alkoxy silicone adhesive/sealant. It cures at room temperature through moisture exposure (RTV) and provides a translucent milky white finish. The material is self-leveling, flexible, and enhances shock absorption while maintaining strong adhesion in harsh environments. Resistant to weathering, ozone, and moisture, it performs reliably up to 200 °C and meets MIL-A-46146B requirements.
Designed for sealing, coating, and potting, it is used in automotive, electronic, military, and industrial components. It ensures uniform cavity filling, electrical insulation, and mechanical stability in demanding conditions such as vibration, high temperature, and moisture exposure.
| Condition | Property | Value |
|---|---|---|
| Uncured | Appearance | Translucent milky white viscous liquid |
| Specific Gravity (25 °C) | 1.05 | |
| Solids Content (%) | ≥92 | |
| Viscosity @ 25 °C (cP) | 85,000 (2.5 rpm), 35,000 (20 rpm) | |
| Cured (1 week, 21–26 °C, 50% RH) | Shore Hardness (A) | ≥15 |
| Elongation (%) | ≥150 | |
| Tensile Strength | ≥1 N/mm² (≥145 psi) | |
| Tear Strength | 17.5 N/mm (100 lb/in) | |
| Water Absorption (24 h @ 23 °C) | 0.05 % | |
| Water Vapor Transmission | 1.5 g/(h·m²) | |
| Dielectric Strength | 16 kV/mm | |
| Volume Resistivity | 7 × 10¹⁶ Ω·cm | |
| Dielectric Constant (100 Hz–1 MHz) | 3.05 | |
| Performance | Lap Shear (Al–Glass) | 1.7 N/mm² (245 psi) |
| Lap Shear (Steel–Glass) | 1.8 N/mm² (260 psi) | |
| Lap Shear (Glass–Glass) | 1.7 N/mm² (245 psi) | |
| Environmental Resistance | Heat Aged (200 °C, 1 wk) | Shore A: 30, Elongation: 200%, Tensile: 1.8 N/mm² |
| Hydrolytic Stability (95 °C, 28 d, 98% RH) | Shore A: 22, Elongation: 235%, Tensile: 1.7 N/mm² |
BERGQUIST® GAP FILLER TGF 2900LVO, a silicone-based 2-component system, delivers optimized heat transfer across ultra-thin bondline interfaces. It is engineered for automotive control modules, high-throughput manufacturing lines, and electronics sensitive to siloxane outgassing, ensuring stable operation in environments spanning -40 °C to +150 °C.
BERGQUIST® LIQUI FORM TLF 10000 addresses critical hotspots in RRU/AAU/BBU units, EV battery packs, 5G antenna modules, industrial controllers, and compact PCBs while stabilizing vertical gaps ≤2.5 mm and preserving electrostatic reliability.
TECHNOMELT® Low Pressure Molding polyamides deliver precision encapsulation of PCBs, PCBAs, connectors, sensors, power modules, LEDs, HVAC controllers, and wearable medical devices, while also enabling leakproof integration in liquid-delivery systems.
Huntsman ARALDITE® systems are designed for • Rotor potting to replace permanent magnets in magnetless motor concepts • Stator encapsulation for enhanced coil protection • High voltage impregnation processes ensuring worker safety and long term adhesion.
