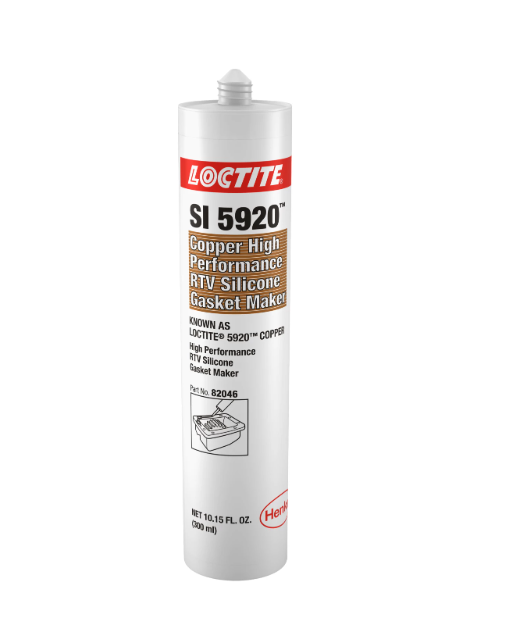

LOCTITE® SI 5920™ is a moisture-curing, non-corrosive silicone sealant designed for gasketing and sealing applications requiring high-temperature resistance (up to 350°C). It adheres well to various substrates and provides electrical insulation.
| Property | Value |
|---|---|
| Uncured Properties | |
| Appearance | Copper-colored paste |
| Specific Gravity @ 22°C | 1.05 |
| Extrusion Rate | ≥275 g/min |
| Flow (ISO 7390) | ≤13 mm |
| Tack Free Time @ 22°C, 50% RH | 20 – 60 min |
| Skin Over Time | 20 min |
| Cured Properties (7 Days @ 25°C, 50% RH) | |
| Shore Hardness (Durometer A) | 23 – 38 |
| Elongation (ISO 37) | ≥350% |
| Tensile Strength (ISO 37) | ≥1.4 N/mm² (205 psi) |
| Cured Properties (21 Days @ 22°C, 50% RH) | |
| Coefficient of Thermal Expansion (ISO 11359-2) | 340×10⁻⁶ K⁻¹ |
| Volume Resistivity (IEC 60093) | 5.5×10¹⁵ Ω·cm |
| Surface Resistivity (IEC 60093) | 200×10¹⁵ Ω·cm |
| Adhesive Performance (Lap Shear Strength, 21 Days @ 22°C, 50% RH) | |
| Copper | 0.3 N/mm² (40 psi) |
| Brass | 0.1 N/mm² (15 psi) |
| Mild Steel | 0.25 N/mm² (35 psi) |
| Mild Steel (grit blasted) | 0.65 N/mm² (95 psi) |
| Aluminum | 0.25 N/mm² (35 psi) |
| Aluminum (grit blasted) | 0.6 N/mm² (90 psi) |
| Stainless Steel | 0.25 N/mm² (35 psi) |
| ABS, Silicone | 0.1 N/mm² (15 psi) |
| Phenolic | 1.0 N/mm² (145 psi) |
| Zinc-plated Steel | 0.4 N/mm² (55 psi) |
| Steel (e-coated) | 1.3 N/mm² (185 psi) |
LOCTITE ECCOBOND UF 9000AG-061 is specifically formulated for FCBGA and Cu pillar flip chip packaging, ensuring robust solder joint encapsulation under extreme electrothermal cycling from -65 °C to 150 °C. Its superior capillary flow also optimizes throughput in automated assembly lines for high-density ICs.
BERGQUIST microTIM mTIM 1028 is purpose built for riding cage assemblies in servers, switches, and routers, interfacing with electroless nickel plated copper or aluminum heat sinks. It ensures stable operation in high power transceiver modules while also extending applicability to liquid cooling components, heat pipes, and fin based dissipative structures.
LOCTITE® ABLESTIK NCA 3218 is specifically formulated for ADAS optical modules, ensuring secure bonding in lens barrel to housing and lens housing to circuit board interfaces where dimensional accuracy and dielectric integrity are non negotiable.
Loctite® 3296, a dual cure (UV & thermal) adhesive, is engineered for active alignment assembly of ADAS cameras and LiDAR modules. Its optimized bonding to aluminum and FR4 substrates ensures secure fixation of optical components while enabling nanometer level alignment critical for high resolution imaging.
