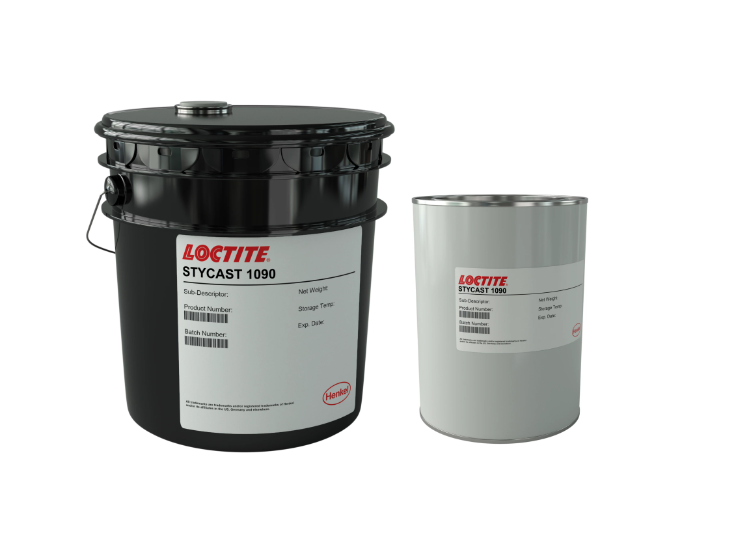

LOCTITE STYCAST 1090 CAT 27-1 is a two-component epoxy encapsulant designed for electronic assemblies requiring lower weight, such as aerospace applications. It offers:
Curing Method: Oven cure (4 hours at 120°C)
Operating Temperature: -40 to 175°C
Available Colors: Black, White
| Property | Part A (Resin) | Part B (Hardener) | Mixed |
|---|---|---|---|
| Appearance | Black | – | – |
| Viscosity (mPa·s @ 25°C) | 135,000 | 250 – 300 | – |
| Specific Gravity | 0.85 | – | – |
| Density (g/cm³) | – | – | 0.827 |
| Shelf Life (@ 25°C, months) | 12 | – | – |
| Property | Value |
|---|---|
| Density (g/cm³) | 0.849 |
| Glass Transition Temperature (Tg, °C) (DMA / TMA) | 129 / 83 |
| Thermal Conductivity (W/m-K) | 0.18 |
| Hardness (Shore D) | 80 |
| Volume Shrinkage on Cure (%) | 2.7 |
| Water Absorption (%): 1 day / 1 week @ 25°C | 0.07 / 0.3 |
| Property | Value |
|---|---|
| Volume Resistivity (ohm-cm) | 1.8 × 10¹⁵ |
| Surface Resistivity (ohms) | 9.3 × 10¹³ |
| Dielectric Strength (kV/mm) | 24 |
| Dielectric Constant / Dissipation Factor | 50 Hz: 3.2 / 0.124 |
| 1 kHz: 3.0 / 0.032 | |
| 1 MHz: 2.7 / 0.023 |
BERGQUIST® GAP FILLER TGF 2900LVO, a silicone-based 2-component system, delivers optimized heat transfer across ultra-thin bondline interfaces. It is engineered for automotive control modules, high-throughput manufacturing lines, and electronics sensitive to siloxane outgassing, ensuring stable operation in environments spanning -40 °C to +150 °C.
BERGQUIST® LIQUI FORM TLF 10000 addresses critical hotspots in RRU/AAU/BBU units, EV battery packs, 5G antenna modules, industrial controllers, and compact PCBs while stabilizing vertical gaps ≤2.5 mm and preserving electrostatic reliability.
TECHNOMELT® Low Pressure Molding polyamides deliver precision encapsulation of PCBs, PCBAs, connectors, sensors, power modules, LEDs, HVAC controllers, and wearable medical devices, while also enabling leakproof integration in liquid-delivery systems.
Huntsman ARALDITE® systems are designed for • Rotor potting to replace permanent magnets in magnetless motor concepts • Stator encapsulation for enhanced coil protection • High voltage impregnation processes ensuring worker safety and long term adhesion.
