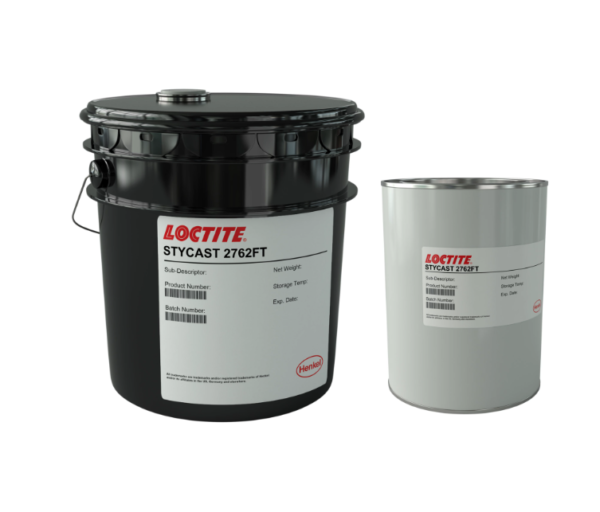

LOCTITE STYCAST 2762FT CAT 17M-1 is a high-performance epoxy encapsulant designed for potting electronic components exposed to harsh environments. It offers excellent high-temperature resistance, high thermal conductivity, and superior chemical resistance. The product is suitable for large and complex castings, providing low shrinkage and a low coefficient of thermal expansion.
| Property | Value |
|---|---|
| Technology | Epoxy |
| Appearance (Resin) | Black |
| Viscosity (mPa·s) | 250,000 |
| Density (g/cm³) | 2.4 |
| Shelf Life @ 25°C | 365 days |
| Property | Value |
|---|---|
| Mixed Viscosity (mPa·s) | 150,000 |
| Mixed Density (g/cm³) | 2.23 |
| Mix Ratio (By Weight) | 100:10 |
| Work Life @ 25°C (100g) | 24 hours |
| Casting Size | Curing Condition |
|---|---|
| Regular Castings | 3 hours @ 125°C + 3 hours @ 175°C |
| Large Castings | 16 hours @ 65°C + 6 hours @ 125°C + 6 hours @ 150°C |
| Post Cure (Optimal) | 4-6 hours at the highest expected use temperature |
| Property | Value |
|---|---|
| Hardness (Shore D) | 94 |
| Thermal Conductivity (W/m-K) | 1.34 |
| Operating Temperature (°C) | -20 to +230 |
| Dielectric Strength (kV/mm) | 15 |
| Dielectric Constant @ 1 MHz | 5.8 |
| Dissipation Factor @ 1 MHz | 0.01 |
| Volume Resistivity (ohm-cm) | >1×10¹⁵ |
