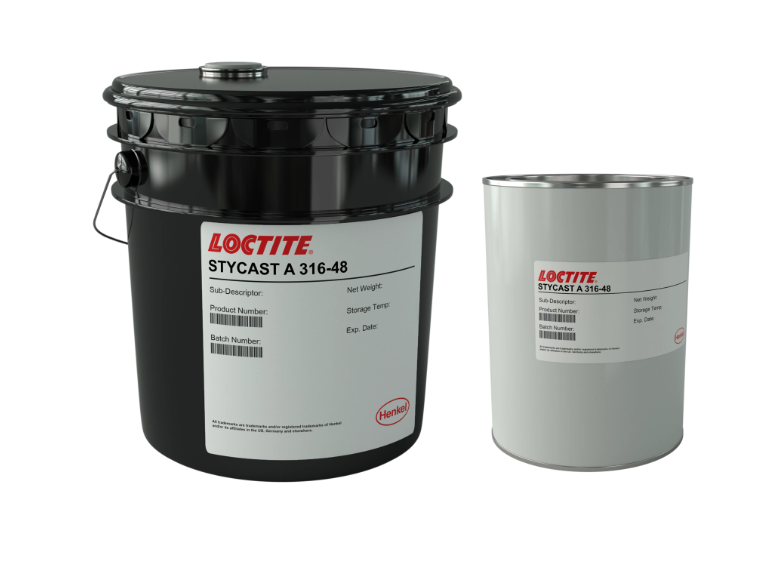

LOCTITE STYCAST A 316-48 is a black, one-component, heat-curable epoxy adhesive with excellent thermal stability and chemical resistance. It is non-conductive and designed for harsh automotive applications.
| Property | Value |
|---|---|
| Viscosity | 50,000 mPa·s (cP) |
| Specific Gravity | 1.4 |
| Shelf Life | 91 days @ 25°C |
| Cure Schedule | Time |
|---|---|
| 100°C | 30 min |
| 120°C | 5 min |
| 140°C | 3 min |
| 160°C | 1 min |
| Post Cure | 2–4 hours at max expected use temperature |
Physical Properties
| Property | Value |
|---|---|
| Coefficient of Thermal Expansion (Below Tg) | 55 ppm/°C |
| Coefficient of Thermal Expansion (Above Tg) | 155 ppm/°C |
| Glass Transition Temperature (Tg) | 145°C |
| Thermal Conductivity | 0.4 W/(m-K) |
| Hardness (Shore D) @ 25°C | 86 |
| Hardness (Shore D) @ 130°C | 40 |
Electrical Properties
| Property | Value |
|---|---|
| Volume Resistivity @ 25°C | 1 × 10¹⁵ ohm·cm |
| Volume Resistivity @ 130°C | 3 × 10¹³ ohm·cm |
| Dielectric Constant @ 1 kHz | 3.75 |
Tensile Strength
| Material | Strength |
|---|---|
| Aluminum @ 25°C | 17.3 N/mm² (2,500 psi) |
BERGQUIST® GAP FILLER TGF 2900LVO, a silicone-based 2-component system, delivers optimized heat transfer across ultra-thin bondline interfaces. It is engineered for automotive control modules, high-throughput manufacturing lines, and electronics sensitive to siloxane outgassing, ensuring stable operation in environments spanning -40 °C to +150 °C.
BERGQUIST® LIQUI FORM TLF 10000 addresses critical hotspots in RRU/AAU/BBU units, EV battery packs, 5G antenna modules, industrial controllers, and compact PCBs while stabilizing vertical gaps ≤2.5 mm and preserving electrostatic reliability.
TECHNOMELT® Low Pressure Molding polyamides deliver precision encapsulation of PCBs, PCBAs, connectors, sensors, power modules, LEDs, HVAC controllers, and wearable medical devices, while also enabling leakproof integration in liquid-delivery systems.
Huntsman ARALDITE® systems are designed for • Rotor potting to replace permanent magnets in magnetless motor concepts • Stator encapsulation for enhanced coil protection • High voltage impregnation processes ensuring worker safety and long term adhesion.
