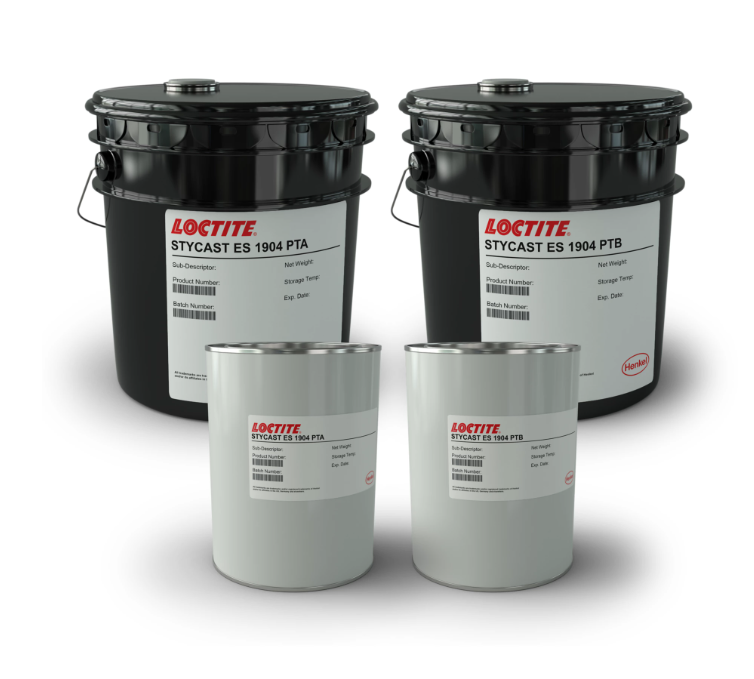

LOCTITE STYCAST ES 1904 is a two-component, opaque epoxy resin designed for potting and encapsulating applications. It offers excellent structural, mechanical, and electrical properties with good wetting and low shrinkage. It cures at room temperature and forms strong bonds with various materials, including optical fibers, glass ceramics, and metals. The adhesive maintains dimensional stability over a temperature range of -60°C to +125°C.
| Property | Part A | Part B | Mixed |
|---|---|---|---|
| Density @ 25°C (g/cm³) | 1.19 | 1.09 | 1.15 |
| Viscosity @ 25°C (cP) | 25,000 | 50,000 | 40,000 |
| Mix Ratio (by weight) | 100 | 46 | – |
| Pot Life @ 25°C (100 g mass) | – | – | 8 to 10 min |
| Gel Time @ 25°C (100 g mass) | – | – | 9 to 14 min |
| Property | Value |
|---|---|
| Physical Properties | |
| Glass Transition Temperature (°C) | 80 |
| Coefficient of Thermal Expansion (ppm/°C) | Pre-Tg: 68, Post-Tg: 190 |
| Shore Hardness (Durometer D) | 90 |
| Water Moisture Absorption (24 hrs, %) | 0.3 |
| Tensile Elongation (%) | 6 |
| Tensile Strength (psi) | 9,900 |
| Compressive Strength (psi) | 19,000 |
| Flexural Strength (psi) | 14,500 |
| Electrical Properties | |
| Dielectric Strength (V/mil) | 1,640 |
| Volume Resistivity (ohm-cm) | 3 × 10¹⁶ |
| Surface Resistivity (ohms @ 25°C) | 3 × 10¹⁶ |
| Dielectric Constant @ 25°C (1 kHz) | 4.0 |
| Dissipation Factor @ 25°C (1 kHz) | 0.009 |
BERGQUIST® GAP FILLER TGF 2900LVO, a silicone-based 2-component system, delivers optimized heat transfer across ultra-thin bondline interfaces. It is engineered for automotive control modules, high-throughput manufacturing lines, and electronics sensitive to siloxane outgassing, ensuring stable operation in environments spanning -40 °C to +150 °C.
BERGQUIST® LIQUI FORM TLF 10000 addresses critical hotspots in RRU/AAU/BBU units, EV battery packs, 5G antenna modules, industrial controllers, and compact PCBs while stabilizing vertical gaps ≤2.5 mm and preserving electrostatic reliability.
TECHNOMELT® Low Pressure Molding polyamides deliver precision encapsulation of PCBs, PCBAs, connectors, sensors, power modules, LEDs, HVAC controllers, and wearable medical devices, while also enabling leakproof integration in liquid-delivery systems.
Huntsman ARALDITE® systems are designed for • Rotor potting to replace permanent magnets in magnetless motor concepts • Stator encapsulation for enhanced coil protection • High voltage impregnation processes ensuring worker safety and long term adhesion.
