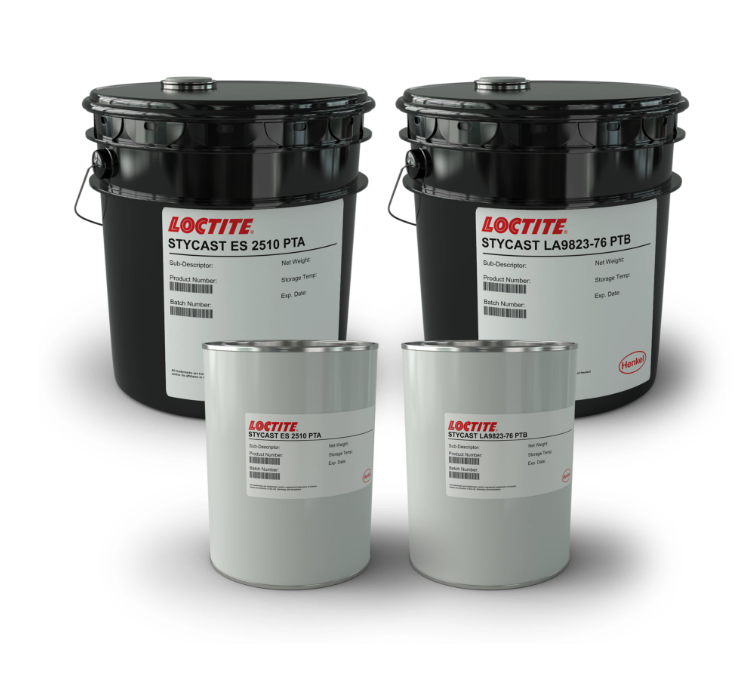

LOCTITE STYCAST ES 2510 is a dielectric-grade epoxy encapsulant designed for general-purpose applications requiring flame retardancy. It offers:
| Property | Value |
|---|---|
| Density @ 25°C | 1.43 g/cc |
| Viscosity (Brookfield, Spindle 4, 10 rpm @ 25°C) | 4,700 mPa·s (cP) |
| Shelf Life @ 25°C | 274 days |
| Property | Value |
|---|---|
| Mix Ratio (by weight) | 100:57 |
| Mix Ratio (by volume) | 100:87 |
| Viscosity (Brookfield, Spindle 4, 10 rpm @ 25°C) | 5,500 mPa·s (cP) |
| Work Life (100g @ 25°C) | 2.5 hours |
| Condition | Time |
|---|---|
| Heat Cure | 2 hours @ 60°C |
| Post Cure (for optimal performance) | 16 hours @ 40°C |
| Property | Value |
|---|---|
| Hardness (Shore D) | 70 |
| Coefficient of Thermal Expansion (ppm/°C) | Below Tg: 64, Above Tg: 194 |
| Glass Transition Temperature (Tg) | 18°C |
| Operating Temperature Range | -40°C to +150°C |
| Compressive Strength | 124 N/mm² (18,000 psi) |
| Linear Shrinkage | 0.13% |
| Property | Value |
|---|---|
| Volume Resistivity @ 25°C | 1.29 × 10¹⁸ ohm·cm |
| Dielectric Constant/Dissipation Factor | |
| @ 60 Hz | 3.09 / 0.06 |
| @ 1 kHz | 2.65 / 0.048 |
| @ 1 MHz | 2.39 / 0.032 |
BERGQUIST® GAP FILLER TGF 2900LVO, a silicone-based 2-component system, delivers optimized heat transfer across ultra-thin bondline interfaces. It is engineered for automotive control modules, high-throughput manufacturing lines, and electronics sensitive to siloxane outgassing, ensuring stable operation in environments spanning -40 °C to +150 °C.
BERGQUIST® LIQUI FORM TLF 10000 addresses critical hotspots in RRU/AAU/BBU units, EV battery packs, 5G antenna modules, industrial controllers, and compact PCBs while stabilizing vertical gaps ≤2.5 mm and preserving electrostatic reliability.
TECHNOMELT® Low Pressure Molding polyamides deliver precision encapsulation of PCBs, PCBAs, connectors, sensors, power modules, LEDs, HVAC controllers, and wearable medical devices, while also enabling leakproof integration in liquid-delivery systems.
Huntsman ARALDITE® systems are designed for • Rotor potting to replace permanent magnets in magnetless motor concepts • Stator encapsulation for enhanced coil protection • High voltage impregnation processes ensuring worker safety and long term adhesion.
