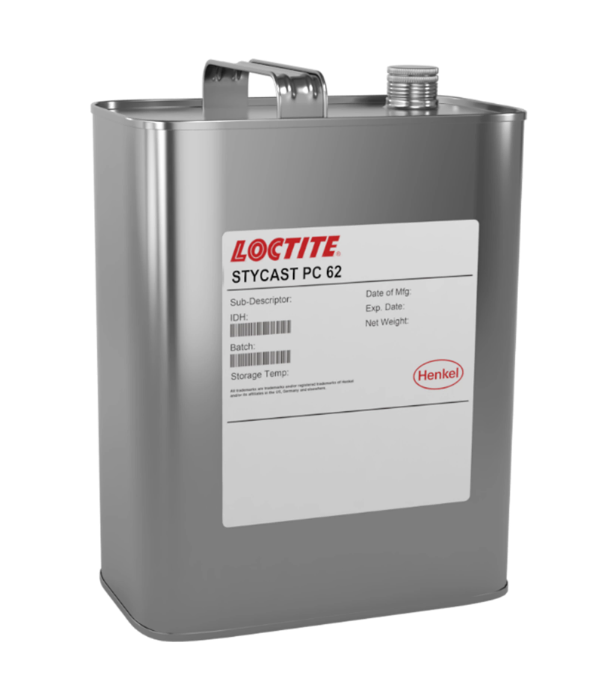

LOCTITE® STYCAST PC 62 is a one-component acrylic conformal coating designed to provide environmental and mechanical protection for printed circuit boards (PCBs). It is fluorescent under UV light, toluene-free, and offers superior toughness and abrasion resistance. The coating is easily removable with a soldering iron or suitable solvent.
| Property | Value |
|---|---|
| Viscosity (Brookfield – LV, 25°C) | 52 cps (Spindle 1, 30 rpm) |
| Specific Gravity @ 25°C | 0.82 |
| Tack-Free Time @ 25°C / 35% RH (120µm wet film) | <5 minutes |
| Drying Method | Time & Temperature |
|---|---|
| Recommended Drying | 24 hours @ 25°C |
| Alternative Drying | 45 minutes @ 75°C |
| Property | Value |
|---|---|
| Film Thickness (Adjustable) | 25 to 100 µm |
| Property | Value |
|---|---|
| Insulation Resistance (50µm film, 25°C / 50% RH) | >2.3 × 10¹⁴ Ω |
| Volume Resistivity | 1.04 × 10¹⁶ Ω·cm |
| Dielectric Strength | 2,000 V/mil |
| Dielectric Constant @ 100 kHz | 2.29 |
| Dissipation Factor @ 100 kHz | 0.12 |
| Property | Test Standard | Result |
|---|---|---|
| Fungus Resistance | ASTM G21 | Non-nutrient |
