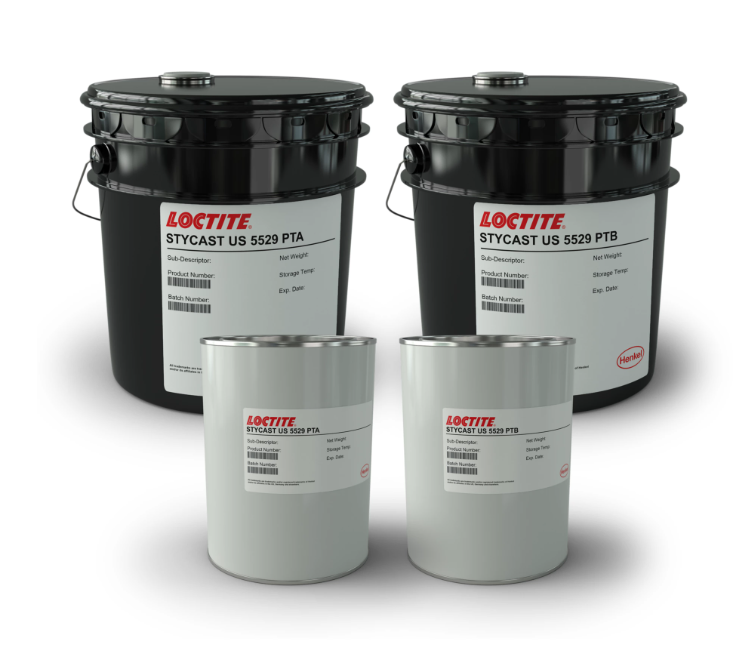

LOCTITE STYCAST US 5529 is a flexible, flame-retardant, mineral-filled polyurethane potting compound. It has low viscosity, long pot life, and excellent adhesion to various substrates. The product has low odor and does not contain TDI or mercury compounds. While it is not UL recognized, it contains the same flame-retardant chemicals as LOCTITE STYCAST US 5528, which is UL recognized.
| Property | Value |
|---|---|
| Viscosity @ 23°C (cPs) | 2,400 |
| Working Time (300 g mass @ 23°C) | 45 min |
| Gel Time (300 g mass @ 23°C) | 90 min |
| Property | Value |
|---|---|
| Density (g/cc) | 1.5 |
| Shore Hardness (A) | 85 |
| Thermal Conductivity (W/m-K) | 0.335 |
| Coefficient of Thermal Expansion (ppm/°C) | 150 |
| Moisture Absorption (24 hrs @ 25°C) | 0.01% |
| Weight Loss (168 hrs @ 130°C) | 0.004% |
| Tensile Strength (psi) | 540 |
| Flammability (6.1 mm) | UL 94V-0 (Pass) |
| Flammability (9.53 mm) | UL 94V-0 (Pass) |
| Property | Value |
|---|---|
| Dielectric Strength (V/mil) | 972 |
| Dielectric Constant @ 100 kHz | 4.0 |
| Dissipation Factor @ 100 kHz | 0.04 |
| Volume Resistivity (Ω·cm) | 4.5 × 10¹³ |
BERGQUIST® GAP FILLER TGF 2900LVO, a silicone-based 2-component system, delivers optimized heat transfer across ultra-thin bondline interfaces. It is engineered for automotive control modules, high-throughput manufacturing lines, and electronics sensitive to siloxane outgassing, ensuring stable operation in environments spanning -40 °C to +150 °C.
BERGQUIST® LIQUI FORM TLF 10000 addresses critical hotspots in RRU/AAU/BBU units, EV battery packs, 5G antenna modules, industrial controllers, and compact PCBs while stabilizing vertical gaps ≤2.5 mm and preserving electrostatic reliability.
TECHNOMELT® Low Pressure Molding polyamides deliver precision encapsulation of PCBs, PCBAs, connectors, sensors, power modules, LEDs, HVAC controllers, and wearable medical devices, while also enabling leakproof integration in liquid-delivery systems.
Huntsman ARALDITE® systems are designed for • Rotor potting to replace permanent magnets in magnetless motor concepts • Stator encapsulation for enhanced coil protection • High voltage impregnation processes ensuring worker safety and long term adhesion.
