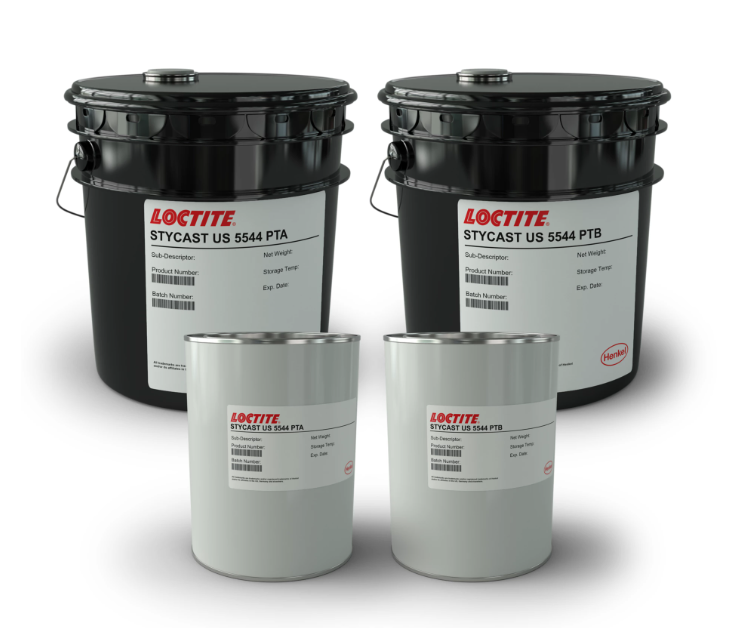

LOCTITE STYCAST US 5544 is a fast-gelling, flexible, flame-retardant, mineral-filled polyurethane compound used for potting and encapsulation. It offers low viscosity, strong adhesion, and fast setting while being low odor and free from TDE or mercury compounds.
| Property | Part A | Part B | Mixed |
|---|---|---|---|
| Appearance | Clear brown | Opaque white | Opaque white |
| Density (g/cm³) | 1.23 | 1.46 | 1.4 |
| Viscosity @ 23°C (cps) | 75 | 11,000 | 2,000 |
| Mix Ratio (by weight) | 15 | 85 | – |
| Mix Ratio (by volume) | 1 | 4.81 | – |
| Gel Time (min) | – | – | 4 to 6 |
| Working Time (min) | – | – | 2 to 3 |
| Cure Condition | Time |
|---|---|
| Room temperature | 2 to 4 hours @ 23°C |
| Heat cure | 30 minutes @ 60–85°C |
| Property | Value |
|---|---|
| Shore Hardness (Durometer A) | 79 – 89 |
| Thermal Conductivity (W/m-K) | 0.335 |
| Weight Loss (168 hrs @ 130ºC) | 0.19% |
| Moisture Absorption (24 hrs) | 0.15% |
| Linear Shrinkage (%) | 0.12% |
| Coefficient of Thermal Expansion (ppm/°C) | α1: 114 (-40 to 25°C) α2: 155 (25 to 125°C) |
| Tensile Strength (psi) | 1,320 |
| Flammability (UL 94) | 9.52mm: V-0 6.35mm: V-2 |
| Property | Value |
|---|---|
| Dielectric Strength (V/mil) | >400 |
| Dielectric Constant (100Hz) | 3.85 |
| Dissipation Factor (100Hz) | 0.02 |
| Volume Resistivity (Ω·cm) | 3.6 × 10¹³ |
LOCTITE ECCOBOND UF 9000AG-061 is specifically formulated for FCBGA and Cu pillar flip chip packaging, ensuring robust solder joint encapsulation under extreme electrothermal cycling from -65 °C to 150 °C. Its superior capillary flow also optimizes throughput in automated assembly lines for high-density ICs.
BERGQUIST microTIM mTIM 1028 is purpose built for riding cage assemblies in servers, switches, and routers, interfacing with electroless nickel plated copper or aluminum heat sinks. It ensures stable operation in high power transceiver modules while also extending applicability to liquid cooling components, heat pipes, and fin based dissipative structures.
LOCTITE® ABLESTIK NCA 3218 is specifically formulated for ADAS optical modules, ensuring secure bonding in lens barrel to housing and lens housing to circuit board interfaces where dimensional accuracy and dielectric integrity are non negotiable.
Loctite® 3296, a dual cure (UV & thermal) adhesive, is engineered for active alignment assembly of ADAS cameras and LiDAR modules. Its optimized bonding to aluminum and FR4 substrates ensures secure fixation of optical components while enabling nanometer level alignment critical for high resolution imaging.
