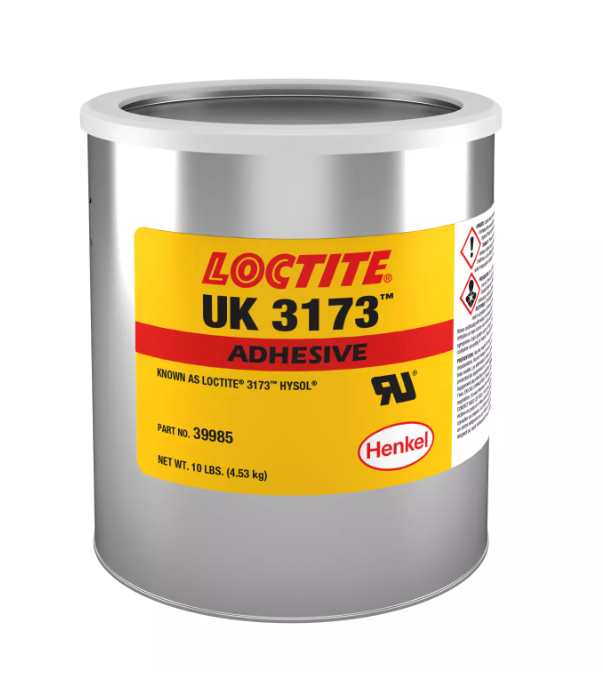

Item Name: LOCTITE® UK 3173 / UK 3182 (Hysol® 3173/3182)
Manufacturer: Henkel
Technologies: Two-component polyurethane resin and hardener system
Color: Resin – Dark brown; Hardener – Black; Mixed – Black
Cure Type: Room temperature or heat cure
Package Size: Contact to Techniq VN for details.
Shelf Life: Contact to Techniq VN for details.
LOCTITE® UK 3173 (polyurethane resin) is designed for combination with LOCTITE® UK 3182 (polyurethane hardener) to produce a low-shrinkage, low-exotherm potting compound. The system cures at room temperature or with accelerated heat and provides balanced electrical insulation, good hardness, and stable mechanical properties.
This system is mainly applied in potting, encapsulation, and protective coating of sensitive components. It is suitable for use in electronic, electrical, and industrial devices where dimensional stability, insulation, and resistance to environmental stress are critical.
| Condition | Property | Value |
|---|---|---|
| Uncured – Resin (UK 3173) | Specific Gravity | 1.23 |
| Viscosity (25 °C, Spindle #1 @ 20 rpm) | 75 cP | |
| Appearance | Dark brown | |
| Uncured – Hardener (UK 3182) | Specific Gravity | 1.59 |
| Viscosity (25 °C, Spindle #6 @ 20 rpm) | 30,000 cP | |
| Appearance | Black | |
| Mixed System (3173 + 3182) | Mix Ratio (Vol./Wt.) | 1:5.2 / 13:87 |
| Specific Gravity | 1.56 | |
| Viscosity (25 °C) | 5,500 cP | |
| Work Time (300 g @ 25 °C) | < 7 min | |
| Gel Time (300 g @ 25 °C) | 14 min | |
| Cure Schedule | 90 min @ 25 °C / 30 min @ 85 °C | |
| Cured System | Shore Hardness (A) | 75 |
| Tg | -10 °C | |
| CTE (above Tg) | 128 × 10⁻⁶ mm/mm·°C | |
| Dielectric Constant (1 kHz) | 4.02 | |
| Dissipation Factor (1 kHz) | 0.07 | |
| Volume Resistivity | 1.5 × 10¹⁵ Ω·cm | |
| Dielectric Strength | 370 V/mil |
BERGQUIST® GAP FILLER TGF 2900LVO, a silicone-based 2-component system, delivers optimized heat transfer across ultra-thin bondline interfaces. It is engineered for automotive control modules, high-throughput manufacturing lines, and electronics sensitive to siloxane outgassing, ensuring stable operation in environments spanning -40 °C to +150 °C.
BERGQUIST® LIQUI FORM TLF 10000 addresses critical hotspots in RRU/AAU/BBU units, EV battery packs, 5G antenna modules, industrial controllers, and compact PCBs while stabilizing vertical gaps ≤2.5 mm and preserving electrostatic reliability.
TECHNOMELT® Low Pressure Molding polyamides deliver precision encapsulation of PCBs, PCBAs, connectors, sensors, power modules, LEDs, HVAC controllers, and wearable medical devices, while also enabling leakproof integration in liquid-delivery systems.
Huntsman ARALDITE® systems are designed for • Rotor potting to replace permanent magnets in magnetless motor concepts • Stator encapsulation for enhanced coil protection • High voltage impregnation processes ensuring worker safety and long term adhesion.
